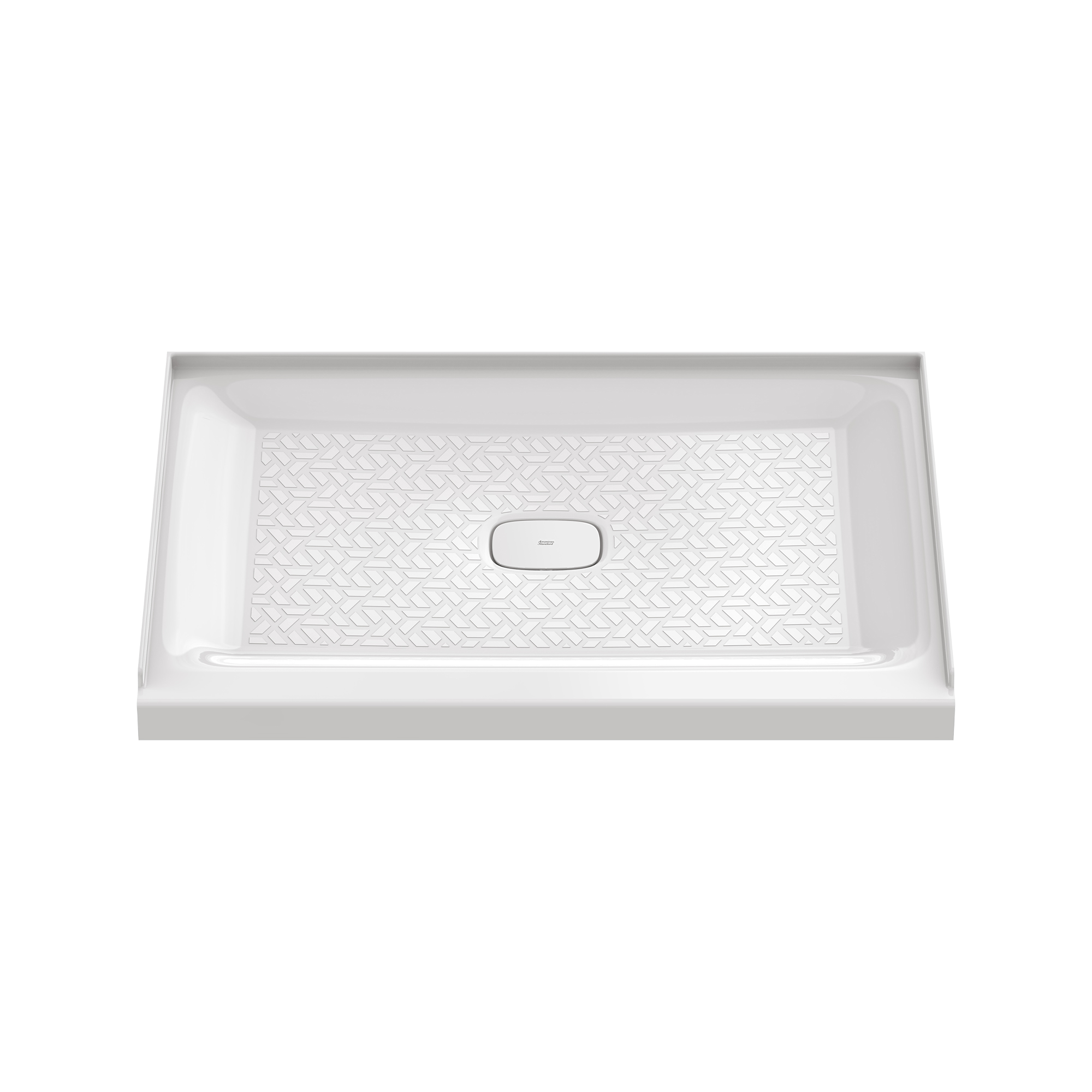

Aspirations 48 x 36-Inch Single Threshold Shower Base With Center Drain
The American Standard Aspirations 48 x 36-Inch Single Threshold Shower Base With Center Drain shower base provides lasting, reliable performance with a non-porous, easy-clean surface and low 3.25-inch threshold for safe, comfortable access. Backed by a 10-year warranty.
Specifications
| Model / Order # | A8022T-CO |
|---|---|
| Collection | Aspirations |
| Family | ASPIRATIONS |
| Series | ACRYLICS |
| Material | Acrylic |
| Finish / Color | White |
| Installation Type | Alcove |
| Shape | Rectangular |
| Threshold Type | Single |
| Country of Origin | USA |
| Residential Warranty | 10-year |
| Commercial Warranty | 1-year |
| Availability | Ships within 7 business days |
Dimensions & Capacity
| Nominal Length | 48 in |
|---|---|
| Nominal Width | 36 in |
| Nominal Height | 4.25 in |
| Drain Position | Center |
| Drain Size | 3.25 in |
| Drain Included | No |

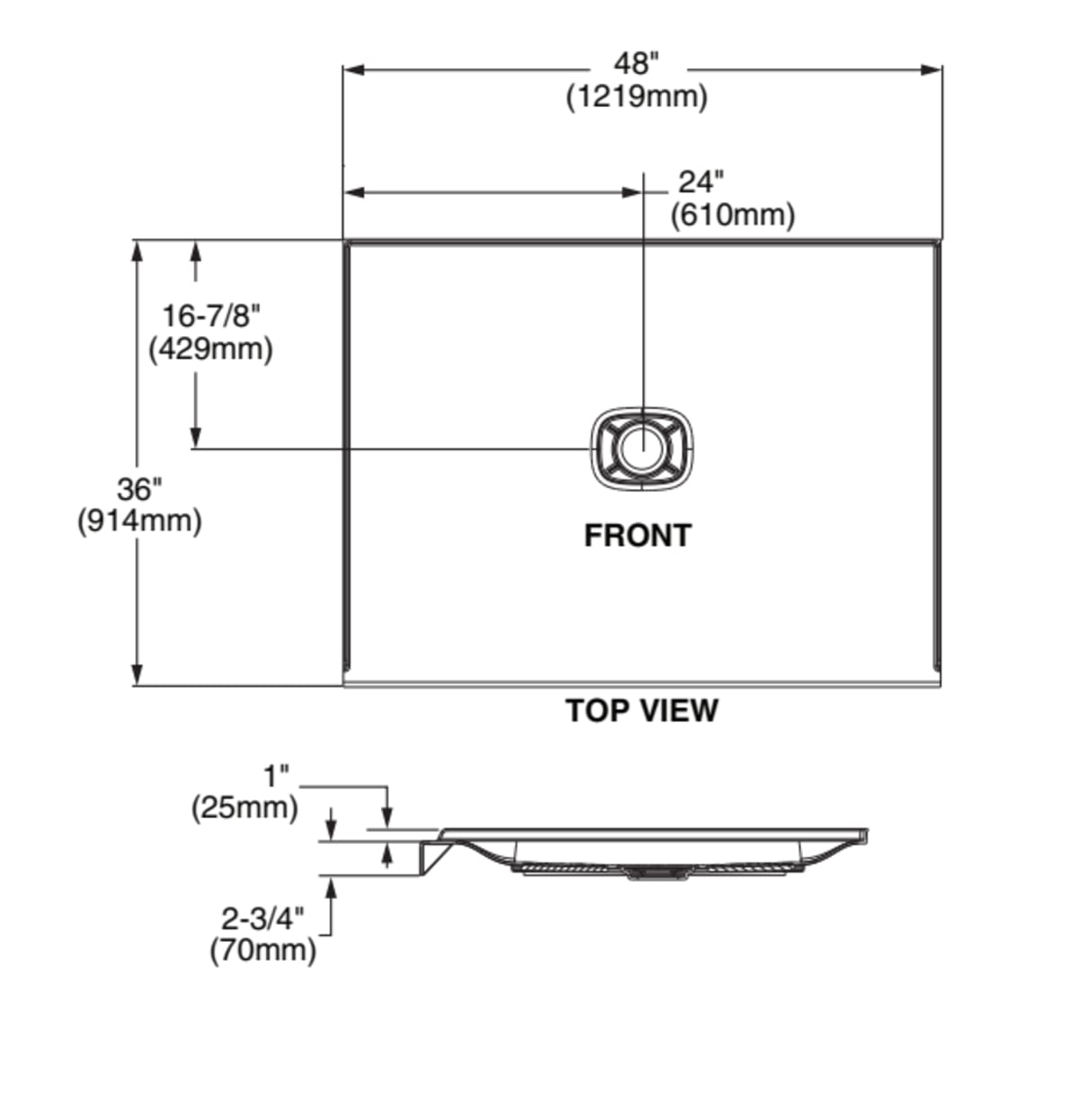

Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- MULTIPLE SIZES: Available in 60 x 30”, 32” or 36”, and 48 x 36” to fit your space perfectly
- LOW THRESHOLD DESIGN: The 2 ¾-in. height makes it easy and safe to step in and out of the shower
- SAFE TEXTURED FLOOR: Offers no-slip confidence when showering
- GLOSSY WHITE FINISH: Designed to complement the Aspirations bath collection
- Durable design – High-gloss acrylic with fiberglass reinforcement
- Easy installation – Pre-leveled bottom for ease and precision
- Contemporary designed color matched white drain cover
- Easy-to-clean high-gloss surface that’s UV stable and stain resistant
- 10 year warranty – Buy with confidence
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 56.879 lbs |
| Shipping Length | 51.62 in |
| Shipping Width | 39.63 in |
| Shipping Height | 6.24 in |
| Cartons | 1 |
| Pieces | 1 |
| Packaging Volume | 7.39 ft³ (0.21 m³) |
| Full-Truckload Qty | 364 |
| Stackable | No |
Installation
Items required for installation
PPE, Level, Measuring Tape, Screws, Fender Washers, Screwdriver, Waste & Overflow Drain Kit (Metal or plastic), Plumber's Putty, Floor Levelling Compound & Trowel (if required)
Documents & Downloads
Certifications & Compliance
Project Information & Notes
10-year residential warranty · 1-year commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
