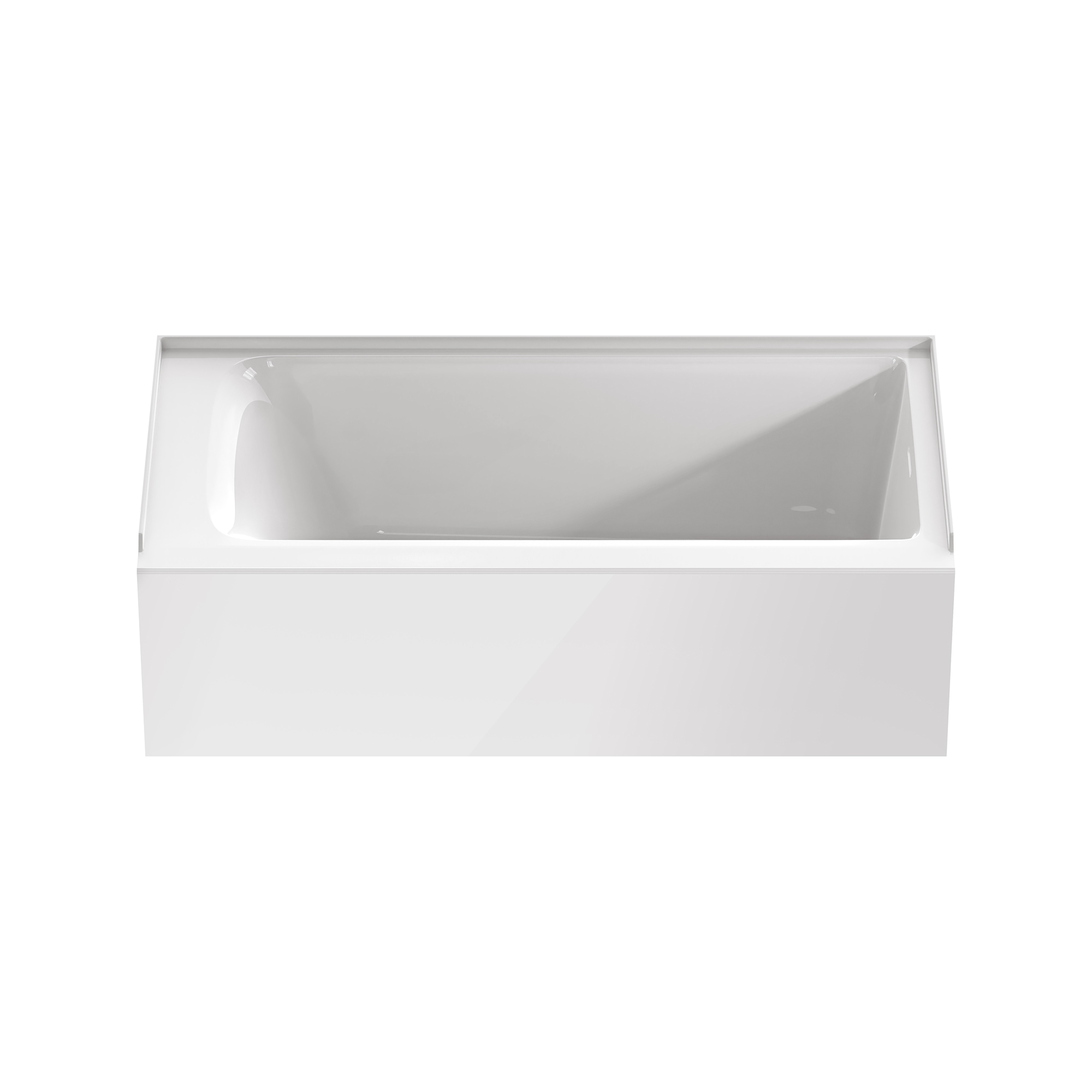

Aspirations 60 x 30-Inch Integral Apron Bathtub With Right-Hand Drain
The American Standard Aspirations 60 x 30-Inch Integral Apron Bathtub With Right-Hand Drain delivers a clean alcove look with the durability and performance your renovation demands. The integral apron front and three-sided tiling flange create a finished, water-tight fit in standard alcove openings. The acrylic surface is non-porous and easy to clean. Backed by a 10-year warranty.
Specifications
| Model / Order # | 2963102 |
|---|---|
| Collection | Aspirations |
| Family | Aspirations |
| Series | ACRYLICS |
| Material | Acrylic |
| Finish / Color | White |
| Installation Type | Alcove |
| Shape | Rectangular |
| Country of Origin | USA |
| Residential Warranty | 10-year |
| Commercial Warranty | 1-year |
| Availability | Ships Free - in 3-4 weeks |
Dimensions & Capacity
| Nominal Length | 60 in |
|---|---|
| Nominal Width | 30 in |
| Nominal Height | 18 in |
| Water Depth | 14 in |
| Water Capacity | 53.6 gal |
| Seating Capacity | 1 |
| Skirt Height | 18 in |
| Drain Position | Right |
| Drain Size | 2.125 in |
| Drain Included | No |
| Overflow Included | No |
Features & Benefits
- Premium materials: High-gloss acrylic with fiberglass reinforcement: non-porous, stain-resistant surface that stays looking new
- Alcove installation: integral apron front creates a polished built-in appearance with integral 3-sided tiling flange for water protection
- Deep soaking comfort: 14-inch water depth delivers ample coverage for a relaxing soak
- Spacious dimensions: 60 x 30-inch footprint and holds up to 53.6 gallons for a comfortable bathing experience
- ADA compliant: meets Americans with Disabilities Act requirements for accessible bathing spaces
- Three-sided tile flange: integral 1-inch water retention flange on three sides protects walls and simplifies installation
- Right-hand drain outlet: pre-positioned drain simplifies rough-in plumbing during installation
- Clean profile: refined exterior lines complement a wide range of bathroom tile and fixture finishes
- Classic white finish: timeless white color coordinates with a wide range of bathroom fixtures and tile
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 96.562 lbs |
| Shipping Length | 64.874 in |
| Shipping Width | 36.68 in |
| Shipping Height | 22.374 in |
| Cartons | 1 |
| Pieces | 1 |
| Packaging Volume | 30.8 ft³ (0.87 m³) |
| Full-Truckload Qty | 72 |
| Stackable | No |
Installation
Items required for installation
PPE, Level, Measuring Tape, Screws, Fender Washers, Screwdriver, Waste & Overflow Drain Kit (Metal or plastic), Plumber's Putty, Floor Levelling Compound & Trowel (if required)
Documents & Downloads
Certifications & Compliance
Project Information & Notes
10-year residential warranty · 1-year commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
