American Standard® · Technical Data Sheet

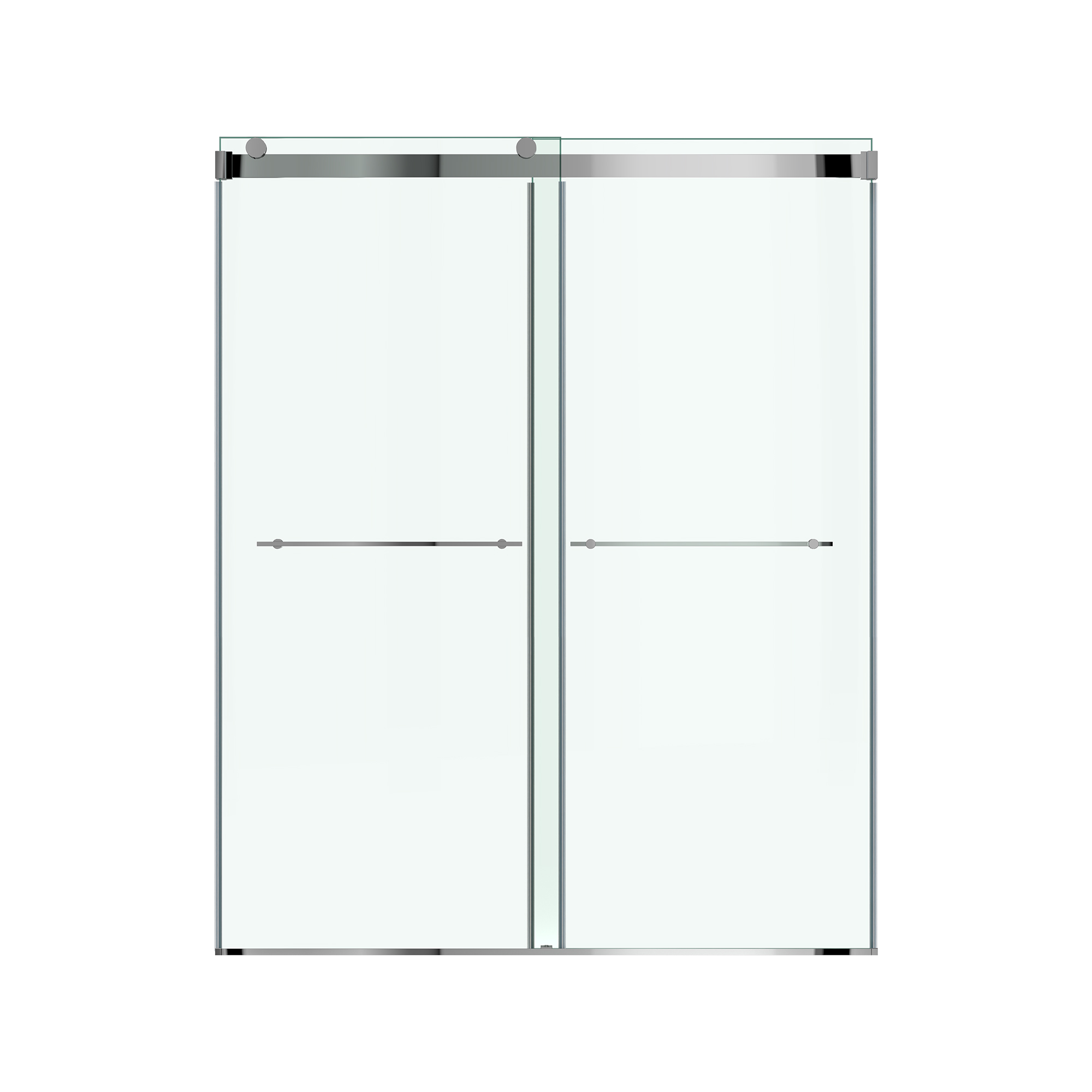

Aspirations 60 x 72-Inch Frameless Sliding Shower Door
The American Standard Aspirations 60 x 72-Inch Frameless Sliding Shower Door delivers a clean frameless aesthetic with 1/4-inch (6 mm) safety-tempered clear glass. Top rollers ensure smooth, dependable sliding operation. Dual-opening doors offer installation flexibility. Backed by a 10-year warranty.
Specifications
| Model / Order # | AM00854400 |
|---|---|
| Collection | Aspirations |
| Family | ASPIRATIONS |
| Series | AS SHOWER DOORS |
| Material | Glass |
| Finish / Color | Brushed Nickel |
| Installation Type | Frameless |
| Door Type | Bypass |
| Frame Type | Frameless |
| Glass Pattern | Clear |
| Country of Origin | China |
| Residential Warranty | 10-year |
| Commercial Warranty | 10-year |
| Availability | Ships Free - in 2-3 weeks |
Dimensions & Capacity
| Nominal Length | 60 in |
|---|---|
| Nominal Width | 60 in |
| Nominal Height | 72 in |
| Glass Thickness | 0.3125 in |
| Door Adjustment | 1 in |
| Min. Walk-Through Opening | 59.4375 in |
| Required Threshold Width | 2.56 in |
| Drain Included | No |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Frameless design: sleek, modern glass-forward aesthetic that opens up the bathroom and creates a spa-like atmosphere
- Safety-tempered glass: 1/4-inch (6 mm) tempered clear glass meets ANSI Z97.1 safety standards for shatter resistance
- Top-roller sliding design: quality top rollers provide quiet, dependable operation with easy open-and-close action
- Generous dimensions: 60 x 72-inch width x height fits standard shower openings
- Crystal-clear glass: water-clear transparency showcases tile work and creates an open, airy feel in the bathroom
- Dual-opening operation: doors slide open from both sides for flexible, convenient entry from either direction
- Easy-clean bottom track: open bottom track design resists mold and mildew buildup and is simple to wipe clean
- Precision manufacturing: components are factory-engineered to fit standard rough openings with minimal field adjustment
- Quality hardware: durable handles and hinges are engineered for thousands of open-and-close cycles
Available Finishes
| Brushed Nickel | AM00854400.295 · UPC 193406301267 |
|---|---|
| Silver Shine | AM00854400.213 · UPC 193406301380 |
| Matte Black | AM00854400.243 · UPC 193406301373 |
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 150 lbs |
| Shipping Length | 76.374 in |
| Shipping Width | 33.626 in |
| Shipping Height | 4.626 in |
| Cartons | 1 |
| Pieces | 1 |
| Packaging Volume | 16.8 ft³ (0.48 m³) |
| Full-Truckload Qty | 216 |
| Stackable | No |
Installation
Items required for installation
Shower Door
Documents & Downloads
Project Information & Notes
Project:
Contractor:
Representative:
Date:
Tel:
Notes:
10-year residential warranty · 10-year commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
