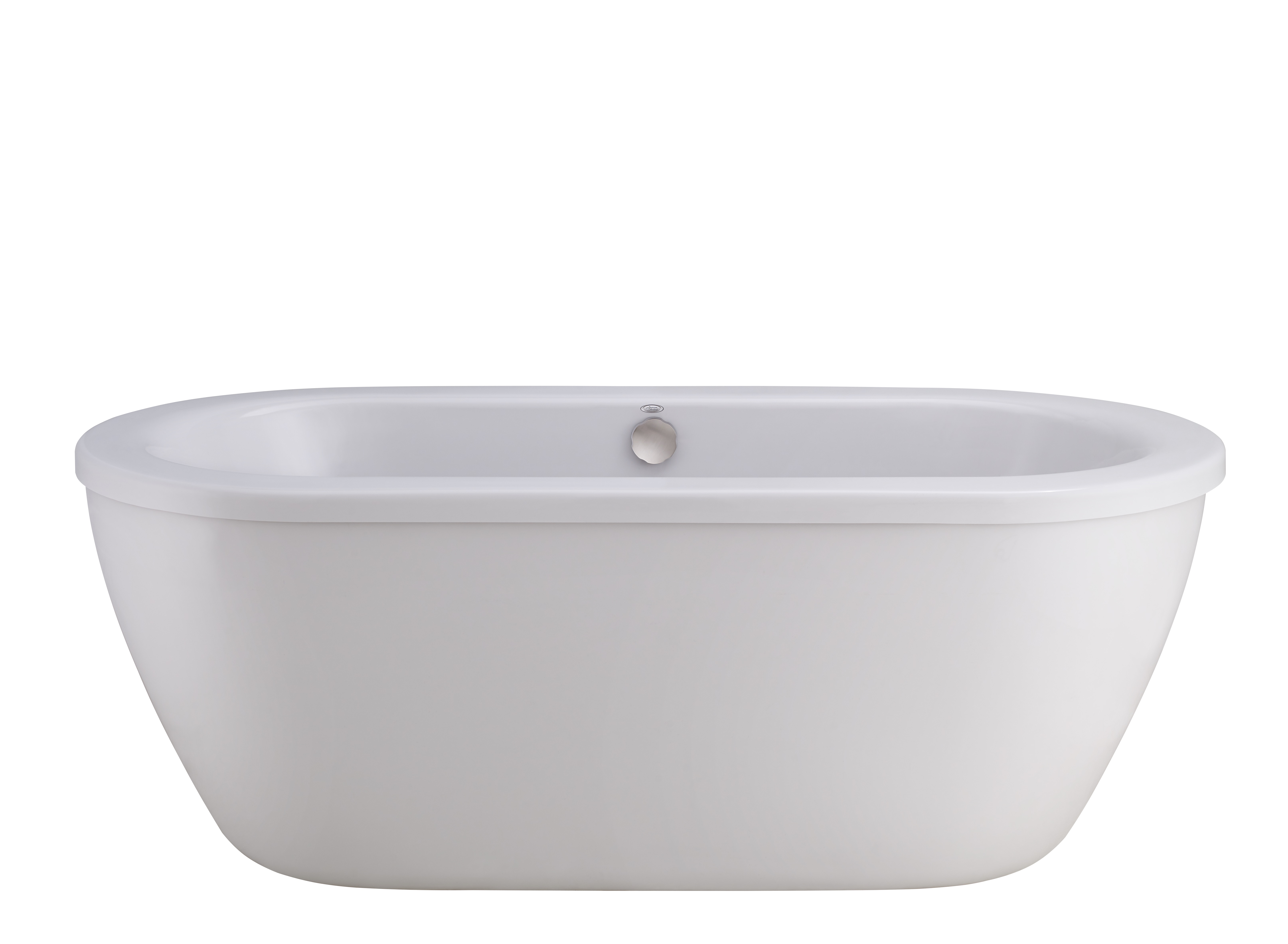

Cadet® 66 x 32-Inch Freestanding Bathtub With Drain Chrome Finish
The American Standard Cadet freestanding bathtub brings sculptural beauty and deep-soaking luxury to any bathroom. Crafted from acrylic with fiberglass reinforcement, it features a 14.62-inch soaking depth for complete immersion and a straight back wall for flush-to-wall placement. Backed by a 10-year warranty.
Specifications
| Model / Order # | 2764014 |
|---|---|
| Collection | Cadet |
| Family | CADET |
| Series | ACRYLICS |
| Material | Acrylic |
| Finish / Color | White |
| Installation Type | Freestanding |
| Shape | Oval |
| Country of Origin | USA |
| Residential Warranty | 10-year |
| Commercial Warranty | 1-year |
| Availability | Ships Free - in 3-4 weeks |
Dimensions & Capacity
| Nominal Length | 66 in |
|---|---|
| Nominal Width | 31 in |
| Nominal Height | 23 in |
| Water Depth | 14.625 in |
| Water Capacity | 58 gal |
| Seating Capacity | 1 |
| Drain Position | Center |
| Drain Size | 2.125 in |
| Drain Included | Yes |
| Overflow Included | Yes (Round) |

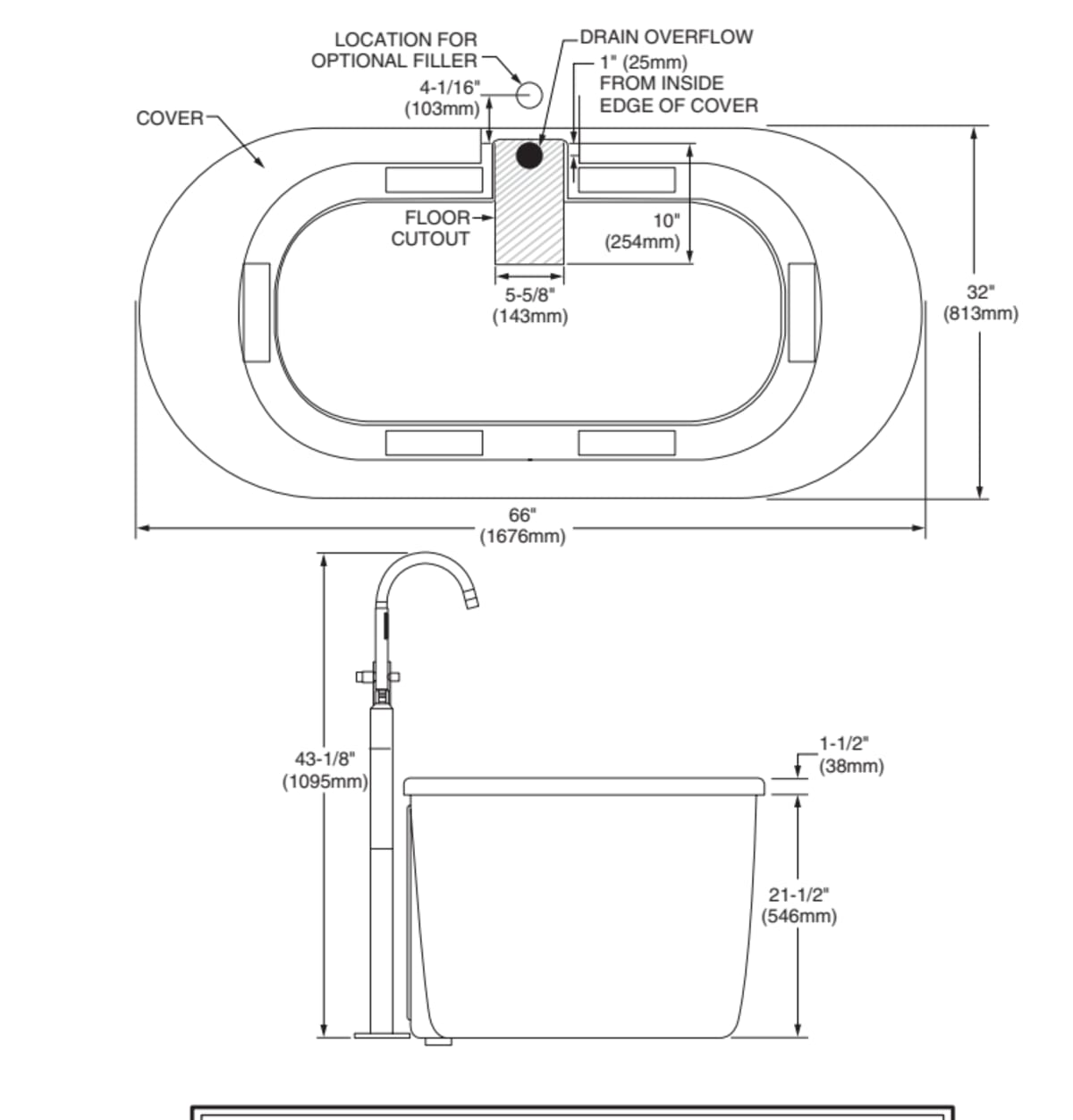

Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Premium materials: High-gloss acrylic with fiberglass reinforcement: non-porous, stain-resistant surface that stays looking new
- Freestanding design: creates a stunning focal point and allows flexible placement including flush-to-wall installation
- Deep soaking comfort: 14.62-inch water depth delivers ample coverage for a relaxing soak
- Spacious dimensions: 66 x 31-inch footprint and holds up to 58 gallons for a comfortable bathing experience
- Safe bathing surface: designed with user safety in mind for confident, secure use
- Flush-to-wall capable: innovative straight back design allows installation against a wall to maximize bathroom space
- Center drain: positioned for symmetric access and comfortable soaking from either end of the tub
- Wide rear deck: rear ledge keeps bathing essentials close at hand
- Classic white finish: timeless white color coordinates with a wide range of bathroom fixtures and tile
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 121 lbs |
| Shipping Length | 68.75 in |
| Shipping Width | 34.5 in |
| Shipping Height | 25.875 in |
| Cartons | 1 |
| Pieces | 2 |
| Packaging Volume | 35.52 ft³ (1.01 m³) |
| Full-Truckload Qty | 54 |
| Stackable | No |
Installation
Items required for installation
PPE, Level, Measuring Tape, Screws, Fender Washers, Screwdriver, Waste & Overflow Drain Kit (Metal or plastic), Plumber's Putty, Floor Levelling Compound & Trowel (if required)
Documents & Downloads
Certifications & Compliance
Project Information & Notes
10-year residential warranty · 1-year commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
