American Standard® · Technical Data Sheet

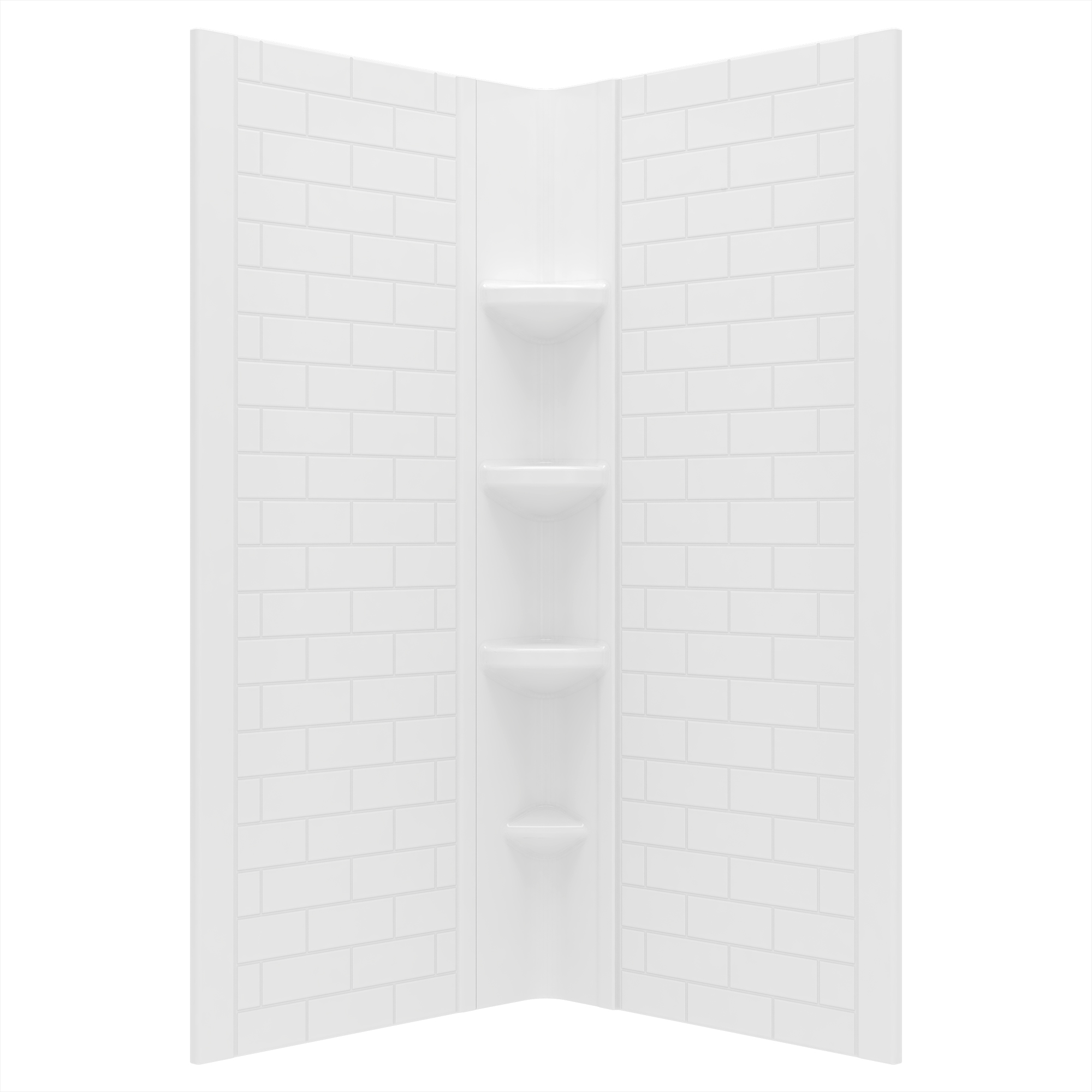

Elevate 38-In. X 38-In. X 74-In. Subway Pattern 2-Pc Shower Surround
The American Standard Elevate subway tile shower wall set provides a stylish, low-maintenance alternative to tile with its subway tile pattern. The multi-piece direct-to-stud system installs without tiling or grouting, and panels can be trimmed for a custom fit. Backed by a 10-year warranty.
Specifications
| Model / Order # | 2947SWT38 |
|---|---|
| Collection | Elevate |
| Family | ELEVATE |
| Series | AS PLASTICS |
| Material | Plastic |
| Finish / Color | Arctic |
| Installation Type | Direct-to-stud |
| Shape | Rectangular |
| Country of Origin | Mexico |
| Residential Warranty | 10-year |
| Commercial Warranty | 10-year |
| Availability | Ships Free - in 1-3 business days |
Dimensions & Capacity
| Nominal Length | 38 in |
|---|---|
| Nominal Height | 74 in |
| Drain Included | No |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- EASY TO INSTALL — Alignment and connection features for expert results
- 2-PIECE WALL SYSTEM — Sized for easy handling, installation and transport
- DURABLE DESIGN — Beauty and durability stand up to daily use
- 10-YEAR WARRANTY — Your assurance of quality and lasting beauty
- DIMENSIONS — 38 x 38 x 74; please refer to specification sheet for exact dimensions and installation information
- PERFECT WALL OPTION — Ideal complement for the Elevate Neo-Angle Base (A8017T-CO.011) and Door (AM00841400) or install this classic tile pattern wall set on your existing tub or shower base for a fresh update
- 10-YEAR WARRANTY — Your assurance of quality and lasting beauty
- DIMENSIONS — 38 x 38 x 74
- please refer to specification sheet for exact dimensions and installation information
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 50 lbs |
| Shipping Length | 77.437 in |
| Shipping Width | 39.375 in |
| Shipping Height | 9.937 in |
| Cartons | 1 |
| Pieces | 2 |
| Packaging Volume | 17.53 ft³ (0.5 m³) |
| Stackable | Yes |
Documents & Downloads
Project Information & Notes
Project:
Contractor:
Representative:
Date:
Tel:
Notes:
10-year residential warranty · 10-year commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
