American Standard® · Technical Data Sheet

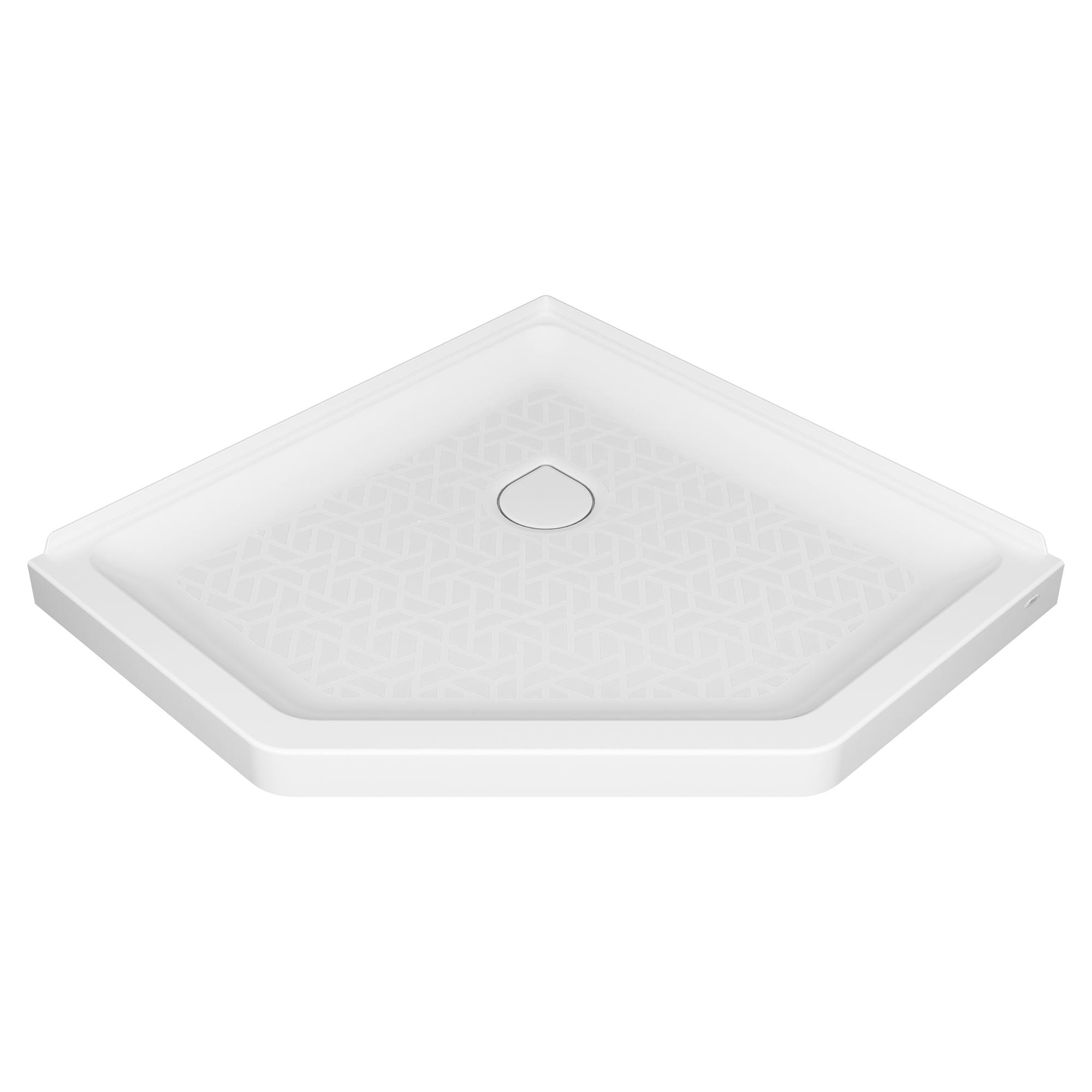

Elevate 38-inch Neo-Angle Base with Center Drain Outlet
The American Standard Elevate 38-inch Neo-Angle Base with Center Drain Outlet features a premium StruXure material that resists peeling and chipping while the preformed Duracomb support base eliminates mortar prep and supports up to 300 lbs. The textured floor surface delivers confident traction. Backed by a 10-year warranty.
Specifications
| Model / Order # | A8017T-CO |
|---|---|
| Collection | Elevate |
| Family | ELEVATE |
| Series | SMC |
| Material | SMC |
| Color | Arctic |
| Installation Type | Alcove |
| Shape | NeoAngle |
| Country of Origin | Mexico |
| Residential Warranty | 10-year |
| Commercial Warranty | 10-year |
| Availability | Ships 1-3 Business Days |
Dimensions & Capacity
| Nominal Length | 38 in |
|---|---|
| Nominal Width | 38 in |
| Nominal Height | 2 in |
| Drain Position | Center |
| Drain Included | No |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- DURABLE DESIGN — Premium StruXure® material resists peeling & chipping
- NO-SLIP FLOOR — Textured surface for added protection from slipping
- 10-YEAR WARRANTY — Your assurance of quality construction and lasting beauty
- DIMENSIONS — 38 x 38 x 2-3/4; please refer to specification sheet for exact dimensions and installation information
- ADD A DOOR —The Elevate angled door is engineered to fit the Elevate neo-angle base perfectly. Model number AM00841400, sold separately
- ADD OPTIONAL WALLS — Consider finishing your shower update with your favorite tile or the Elevate subway tile patterned wall system. Model number 2947SWT38.011, sold separately
- *Maximum weight support of 300 lbs. without mortar
- please refer to specification sheet for exact dimensions and installation information
- ADD A DOOR —The Elevate angled door is engineered to fit the Elevate neo-angle base perfectly. Model number AM00841400, sold separately
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 38 lbs |
| Shipping Length | 39.812 in |
| Shipping Width | 39.625 in |
| Shipping Height | 4.375 in |
| Cartons | 1 |
| Pieces | 1 |
| Packaging Volume | 3.99 ft³ (0.11 m³) |
| Stackable | No |
Documents & Downloads
Certifications & Compliance
IAPMO ListedCSA
Project Information & Notes
Project:
Contractor:
Representative:
Date:
Tel:
Notes:
10-year residential warranty · 10-year commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
