American Standard® · Technical Data Sheet

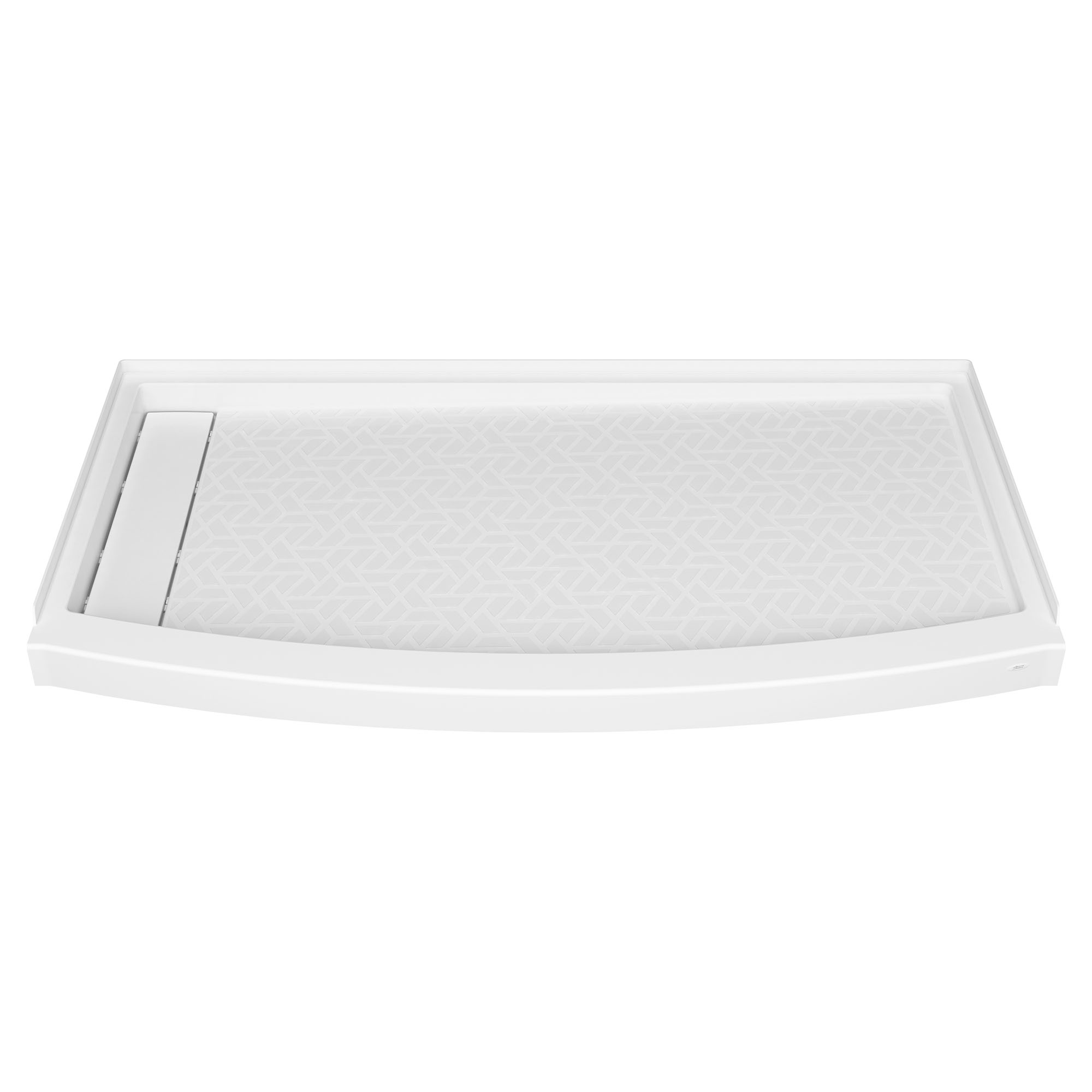

Elevate 60x30 Curved Shower Base Left Hand Drain
The American Standard Elevate 60x30 Curved Shower Base Left Hand Drain features a premium StruXure material that resists peeling and chipping while the preformed Duracomb support base eliminates mortar prep and supports up to 300 lbs. The curved front edge maximizes comfort and shower entry ease. Backed by a limited lifetime warranty.
Specifications
| Model / Order # | A80A4T-LHO |
|---|---|
| Collection | Elevate |
| Family | ELEVATE |
| Series | SMC |
| Material | SMC |
| Color | Arctic |
| Installation Type | Alcove |
| Shape | Curved |
| Country of Origin | Mexico |
| Residential Warranty | Limited Lifetime |
| Commercial Warranty | Lifetime |
| Availability | Ships 1-3 Business Days |
Dimensions & Capacity
| Nominal Length | 60 in |
|---|---|
| Nominal Width | 30 in |
| Drain Position | Left |
| Drain Included | No |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Try disabling your extensions.
- Try disabling your extensions.
- Try disabling your extensions.
- Try disabling your extensions.
- A sleek trench drain and cover are included, and installation clips make setup simple.
- Shower drain not included.
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 53 lbs |
| Shipping Length | 61.626 in |
| Shipping Width | 35.748 in |
| Shipping Height | 4.626 in |
| Cartons | 1 |
| Packaging Volume | 5.9 ft³ (0.17 m³) |
| Stackable | No |
Documents & Downloads
Project Information & Notes
Project:
Contractor:
Representative:
Date:
Tel:
Notes:
Limited Lifetime residential warranty · Lifetime commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
