American Standard® · Technical Data Sheet

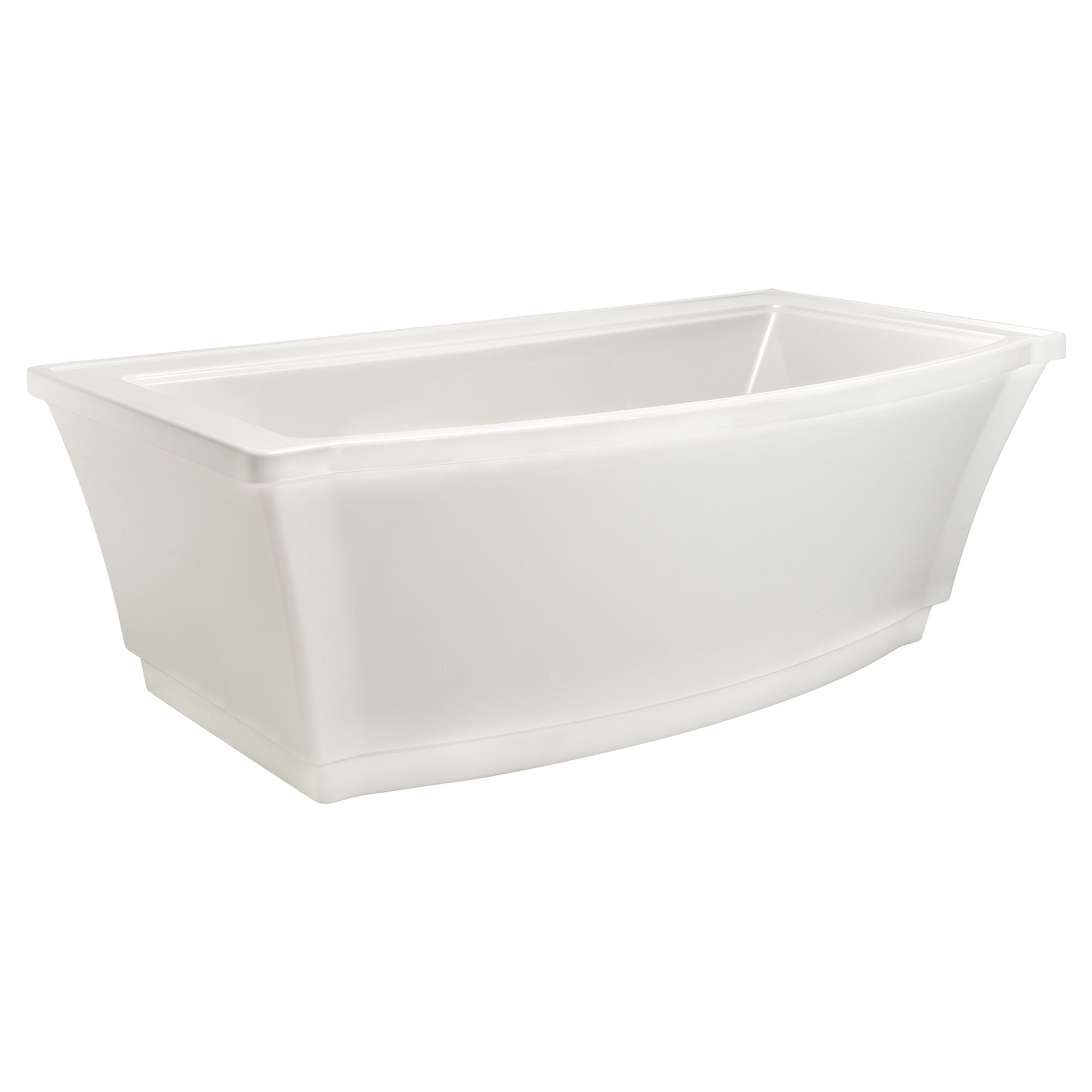

Estate Freestanding Bathtub
The American Standard Estate Freestanding Bathtub freestanding bathtub brings sculptural beauty and deep-soaking luxury to any bathroom. Crafted from acrylic with fiberglass reinforcement, it features a 14.88-inch soaking depth for complete immersion and a straight back wall for flush-to-wall placement. Backed by a limited lifetime warranty.
Specifications
| Model / Order # | 2692004 |
|---|---|
| Collection | Estate |
| Family | ESTATE |
| Series | ACRYLICS |
| Material | Acrylic |
| Finish / Color | White |
| Installation Type | Freestanding |
| Shape | Rectangular |
| Country of Origin | China |
| Residential Warranty | Limited Lifetime |
| Commercial Warranty | Lifetime |
| Availability | Ships Free - in 3-4 weeks |
Dimensions & Capacity
| Nominal Length | 68 in |
|---|---|
| Nominal Width | 36 in |
| Nominal Height | 24 in |
| Water Depth | 14.875 in |
| Water Capacity | 62 gal |
| Seating Capacity | 2 |
| Drain Position | Center |
| Drain Size | 2.125 in |
| Drain Included | No |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Premium materials: High-gloss acrylic with fiberglass reinforcement: non-porous, stain-resistant surface that stays looking new
- Freestanding design: creates a stunning focal point and allows flexible placement including flush-to-wall installation
- Deep soaking comfort: 14.88-inch water depth delivers ample coverage for a relaxing soak
- Spacious dimensions: 68 x 36-inch footprint and holds up to 62 gallons for a comfortable bathing experience
- Safe bathing surface: designed with user safety in mind for confident, secure use
- Flush-to-wall capable: innovative straight back design allows installation against a wall to maximize bathroom space
- Center drain: positioned for symmetric access and comfortable soaking from either end of the tub
- Wide rear deck: rear ledge keeps bathing essentials close at hand
- High-gloss finish: non-porous, bright surface reflects light beautifully and cleans easily
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 210 lbs |
| Shipping Length | 70.75 in |
| Shipping Width | 38.438 in |
| Shipping Height | 27.375 in |
| Cartons | 1 |
| Packaging Volume | 43.08 ft³ (1.22 m³) |
| Stackable | No |
Documents & Downloads
Project Information & Notes
Project:
Contractor:
Representative:
Date:
Tel:
Notes:
Limited Lifetime residential warranty · Lifetime commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
