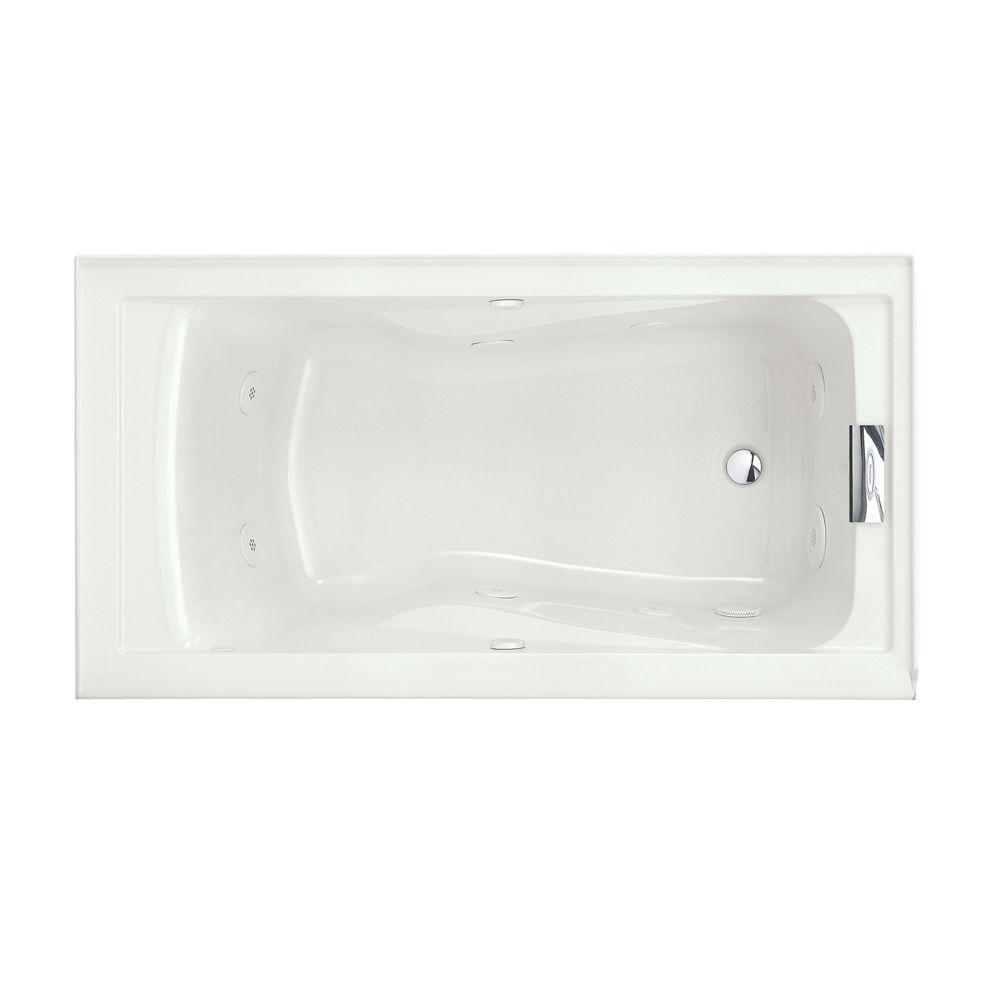

Evolution® 60 x 32-Inch Deep Soak® Drop-In Bathtub With EverClean® Hydromassage System
Turn your bathroom into a private spa with the American Standard Evolution whirlpool. The EverClean system inhibits mold and mildew growth inside the piping so every soak is clean and invigorating. Built from durable acrylic with fiberglass reinforcement, it features a 18.5-inch soaking depth and a 60 x 32-inch footprint. Backed by a 10-year warranty.
Specifications
| Model / Order # | 2422VC |
|---|---|
| Collection | Evolution |
| Family | EVOLUTION |
| Series | ACRYLICS |
| Material | Acrylic |
| Finish / Color | White |
| Installation Type | Drop-In |
| Shape | Rectangular |
| Country of Origin | USA |
| Residential Warranty | 10-year |
| Commercial Warranty | 1-year |
| Availability | Ships Free - in 3-4 weeks |
Dimensions & Capacity
| Nominal Length | 60 in |
|---|---|
| Nominal Width | 32 in |
| Nominal Height | 20 in |
| Water Depth | 18.5 in |
| Water Capacity | 74 gal |
| Seating Capacity | 1 |
| Drain Position | Reversible |
| Drain Size | 2.125 in |
| Drain Included | No |
| Overflow Included | No |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Premium materials: High-gloss acrylic with fiberglass reinforcement: non-porous, stain-resistant surface that stays looking new
- Drop-in installation: fits into any custom deck or platform for a tailored, architectural look
- Deep soaking comfort: 18.5-inch water depth provides a full-body immersion experience
- Spacious dimensions: 60 x 32-inch footprint and holds up to 74 gallons for a comfortable bathing experience
- EverClean whirlpool system: patented antimicrobial additive is molded directly into the circulation piping to inhibit mold and mildew growth
- Safe bathing surface: designed with user safety in mind for confident, secure use
- Installation ready: engineered for straightforward installation with standard tools and hardware
- Reversible drain: adaptable drain outlet works with left- or right-hand plumbing configurations
- Flexible deck space: drop-in configuration allows you to customize the surrounding deck for your preferred storage needs
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 90 lbs |
| Shipping Length | 62.75 in |
| Shipping Width | 34.75 in |
| Shipping Height | 25.5 in |
| Cartons | 1 |
| Pieces | 1 |
| Packaging Volume | 32.18 ft³ (0.91 m³) |
| Full-Truckload Qty | 54 |
| Stackable | No |
Installation
Items required for installation
PPE, Level, Measuring Tape, Screws, Fender Washers, Screwdriver, Waste & Overflow Drain Kit (Metal or plastic), Plumber's Putty, Floor Levelling Compound & Trowel (if required)
Documents & Downloads
Certifications & Compliance
Project Information & Notes
10-year residential warranty · 1-year commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
