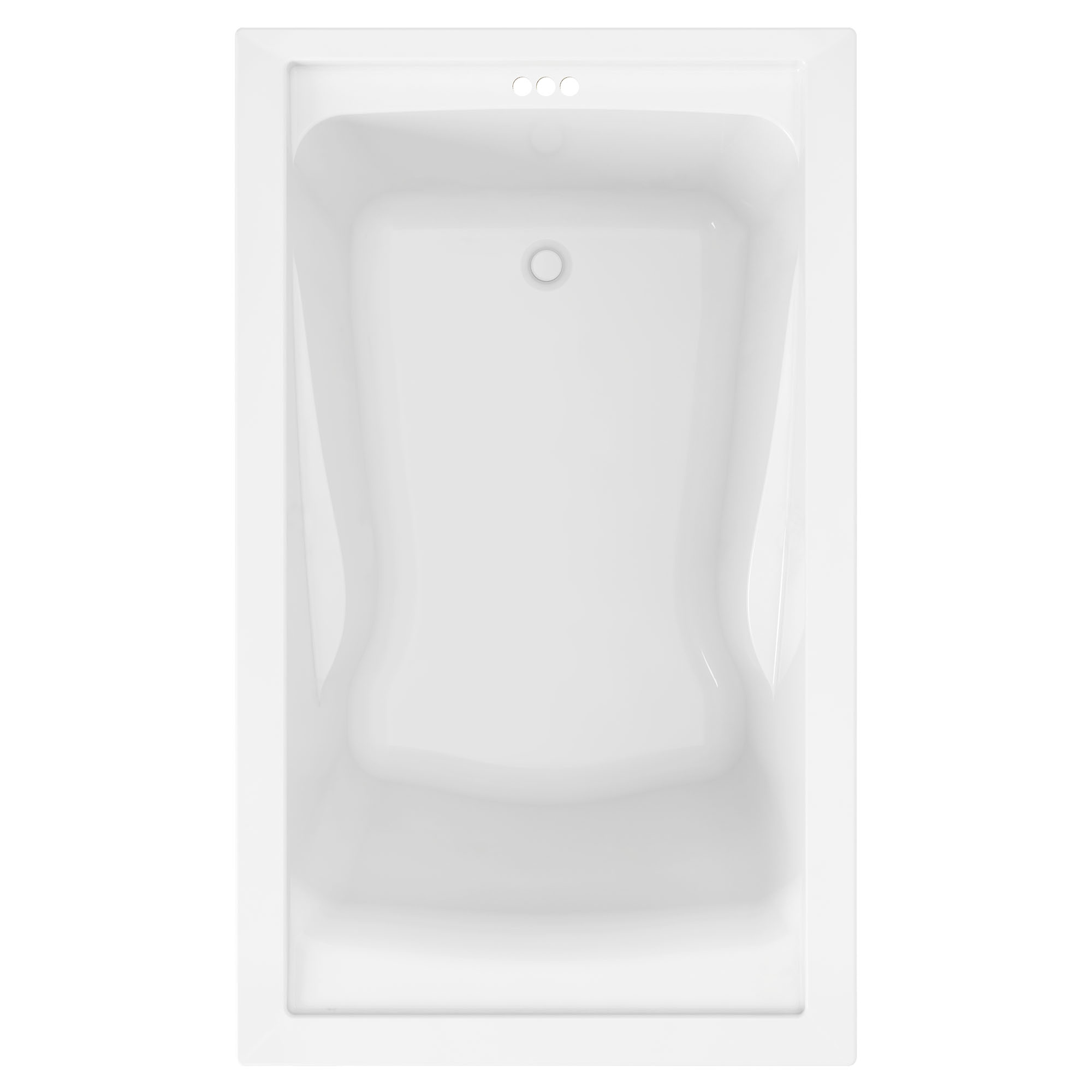

Evolution® 60 x 36-Inch Deep Soak® Drop-In Bathtub
Adapt to greater depths of relaxation. This bathtub from our Evolution® Collection goes well with casual bathroom décor. Made from fiberglass-reinforced acrylic for extra strength, plus a backrest and dual armrests for added comfort. Requires a Deep Soak® Max Drain that allows 3" more water. Drop-in or alcove installation with an optional apron.
Specifications
| Model / Order # | 2771V002 |
|---|---|
| Collection | Evolution |
| Family | EVOLUTION |
| Series | ACRYLICS |
| Material | Acrylic |
| Finish / Color | White |
| Installation Type | Drop-In |
| Shape | Rectangular |
| Country of Origin | USA |
| Residential Warranty | 10-year |
| Commercial Warranty | 1-year |
| Availability | Ships Free - in 3-4 weeks |
Dimensions & Capacity
| Nominal Length | 60 in |
|---|---|
| Nominal Width | 36 in |
| Nominal Height | 20 in |
| Water Depth | 18.5 in |
| Water Capacity | 87 gal |
| Seating Capacity | 1 |
| Drain Position | Reversible |
| Drain Size | 2.125 in |
| Drain Included | No |
| Overflow Included | No |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Acrylic with fiberglass reinforcement
- Dual molded-in armrests
- Pre-leveled tub bottom
- Undermount option
- Must order Deep Soak Max Drain
- Nominal Dimensions: 60" x 36" x 21-1/2" (1524 x 914 x 546 mm
- Glossy white finish is nonporous for easy maintenance
- Easier to clean and stays cleaner longer
- 10 year warranty – Buy with confidence
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 84 lbs |
| Shipping Length | 62.56 in |
| Shipping Width | 38.56 in |
| Shipping Height | 23.62 in |
| Pieces | 1 |
| Packaging Volume | 32.97 ft³ (0.93 m³) |
| Full-Truckload Qty | 45 |
| Stackable | Yes |
Installation
Items required for installation
PPE, Level, Measuring Tape, Screws, Fender Washers, Screwdriver, Waste & Overflow Drain Kit (Metal or plastic), Plumber's Putty, Floor Levelling Compound & Trowel (if required)
Documents & Downloads
Certifications & Compliance
Project Information & Notes
10-year residential warranty · 1-year commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
