American Standard® · Technical Data Sheet

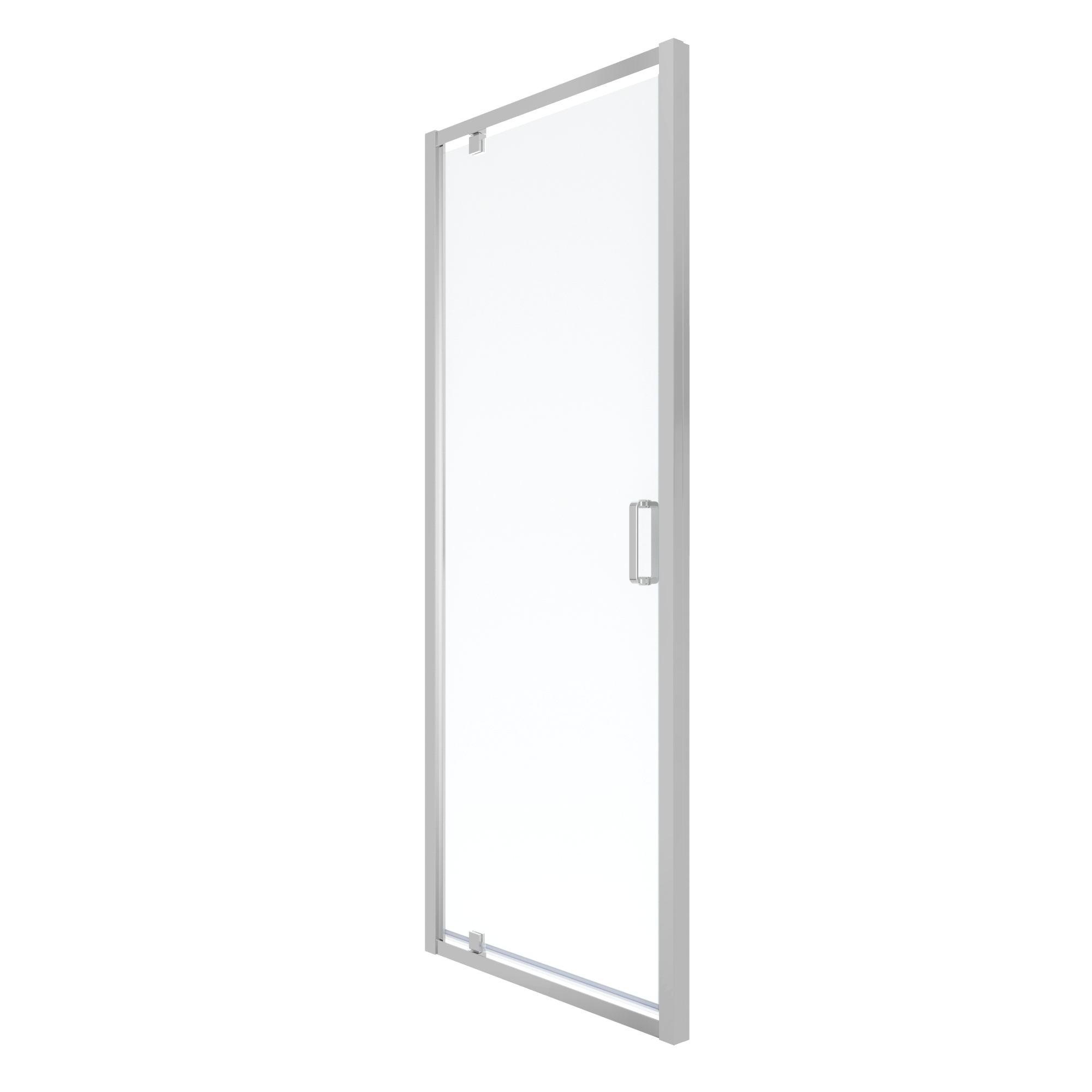

Mainstream 32 In. x 72 In. Shower Door
The American Standard Mainstream 32 In. x 72 In. Shower Door delivers quality construction and reliable performance with 1/4-inch (6 mm) safety-tempered clear glass. The pivot hinge provides smooth, dependable swing operation. Backed by a limited lifetime warranty.
Specifications
| Model / Order # | AM00842400 |
|---|---|
| Collection | Mainstream |
| Family | MAINSTREAM |
| Series | AS SHOWER DOORS |
| Material | Tempered Glass, Aluminum |
| Finish / Color | Silver Shine |
| Installation Type | Alcove |
| Door Type | Pivot |
| Frame Type | Framed |
| Glass Pattern | Clear |
| Country of Origin | China |
| Residential Warranty | Limited Lifetime |
| Commercial Warranty | Lifetime |
| Availability | Ships Free - in 2-3 weeks |
Dimensions & Capacity
| Nominal Length | 32 in |
|---|---|
| Nominal Width | 32 in |
| Nominal Height | 72 in |
| Glass Thickness | 0.25 in |
| Drain Included | No |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Framed construction: full aluminum frame delivers maximum structural rigidity and a classic, polished appearance
- Safety-tempered glass: 1/4-inch (6 mm) tempered clear glass meets ANSI Z97.1 safety standards for shatter resistance
- Quality hardware: precision-engineered door mechanisms deliver smooth, reliable daily operation
- Generous dimensions: 32 x 72.12-inch width x height fits standard shower openings
- Crystal-clear glass: water-clear transparency showcases tile work and creates an open, airy feel in the bathroom
- Flexible installation: configurable for left- or right-hand installation to suit any bathroom layout
- Clean profile: minimal hardware elements keep the enclosure looking streamlined and easy to maintain
- Precision manufacturing: components are factory-engineered to fit standard rough openings with minimal field adjustment
- Quality hardware: durable handles and hinges are engineered for thousands of open-and-close cycles
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 55 lbs |
| Shipping Length | 32.438 in |
| Shipping Width | 2.75 in |
| Shipping Height | 76.75 in |
| Cartons | 1 |
| Packaging Volume | 3.96 ft³ (0.11 m³) |
| Stackable | No |
Documents & Downloads
Project Information & Notes
Project:
Contractor:
Representative:
Date:
Tel:
Notes:
Limited Lifetime residential warranty · Lifetime commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
