American Standard® · Technical Data Sheet

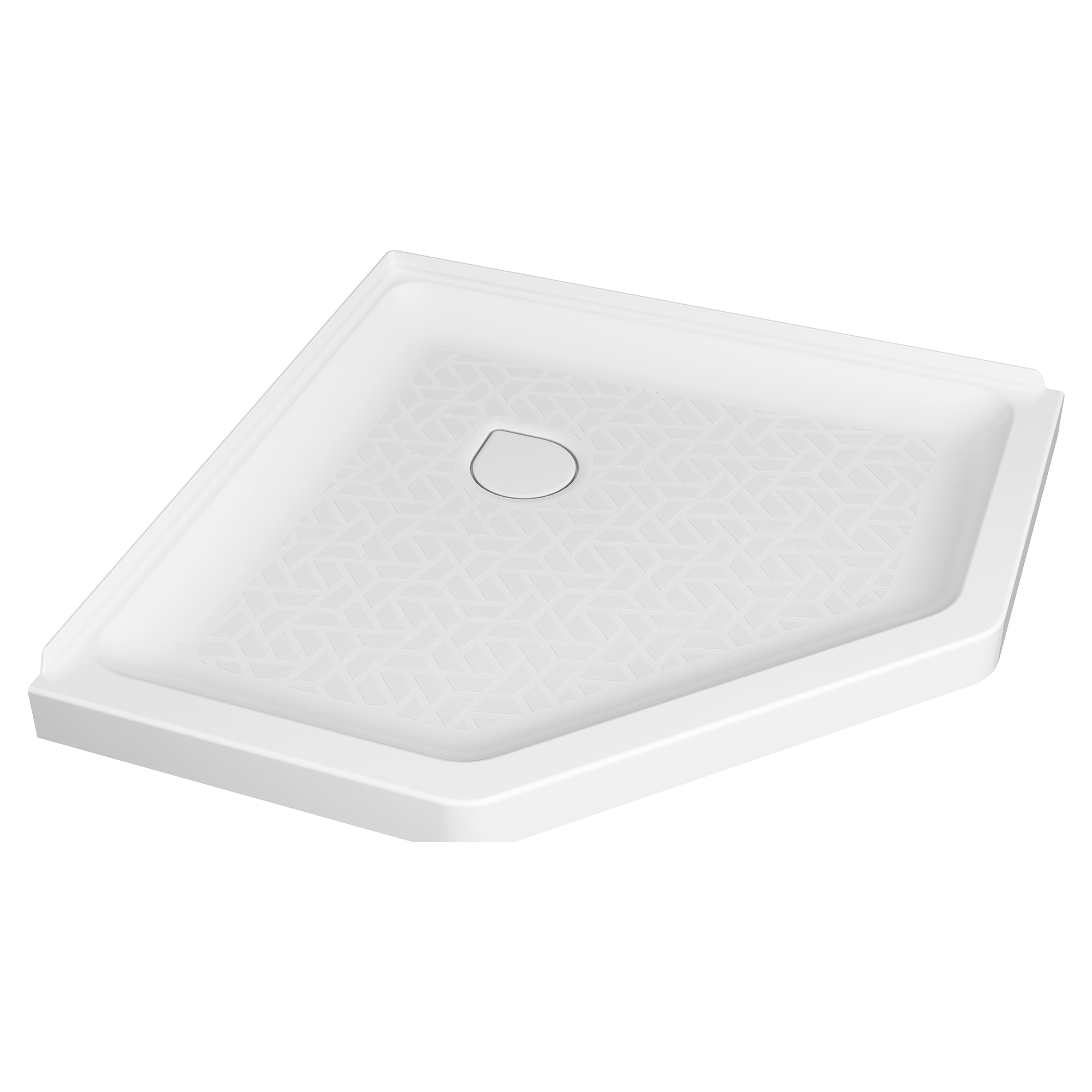

Ovation Curve 38-inch Neo-Angle Base with Center Drain Outlet
The American Standard Ovation Curve 38-inch Neo-Angle Base with Center Drain Outlet features a premium StruXure material that resists peeling and chipping while the preformed Duracomb support base eliminates mortar prep and supports up to 300 lbs. The curved front edge maximizes comfort and shower entry ease. Backed by a 10-year warranty.
Specifications
| Model / Order # | B8017A-ST3 |
|---|---|
| Collection | Ovation Curve |
| Family | OVATION |
| Series | SMC |
| Material | SMC |
| Color | Arctic |
| Installation Type | Alcove |
| Shape | Curved |
| Country of Origin | Mexico |
| Residential Warranty | 10-year |
| Commercial Warranty | 10-year |
| Availability | Ships 1-3 Business Days |
Dimensions & Capacity
| Nominal Length | 38 in |
|---|---|
| Nominal Width | 38 in |
| Nominal Height | 2 in |
| Drain Position | Center |
| Drain Included | No |

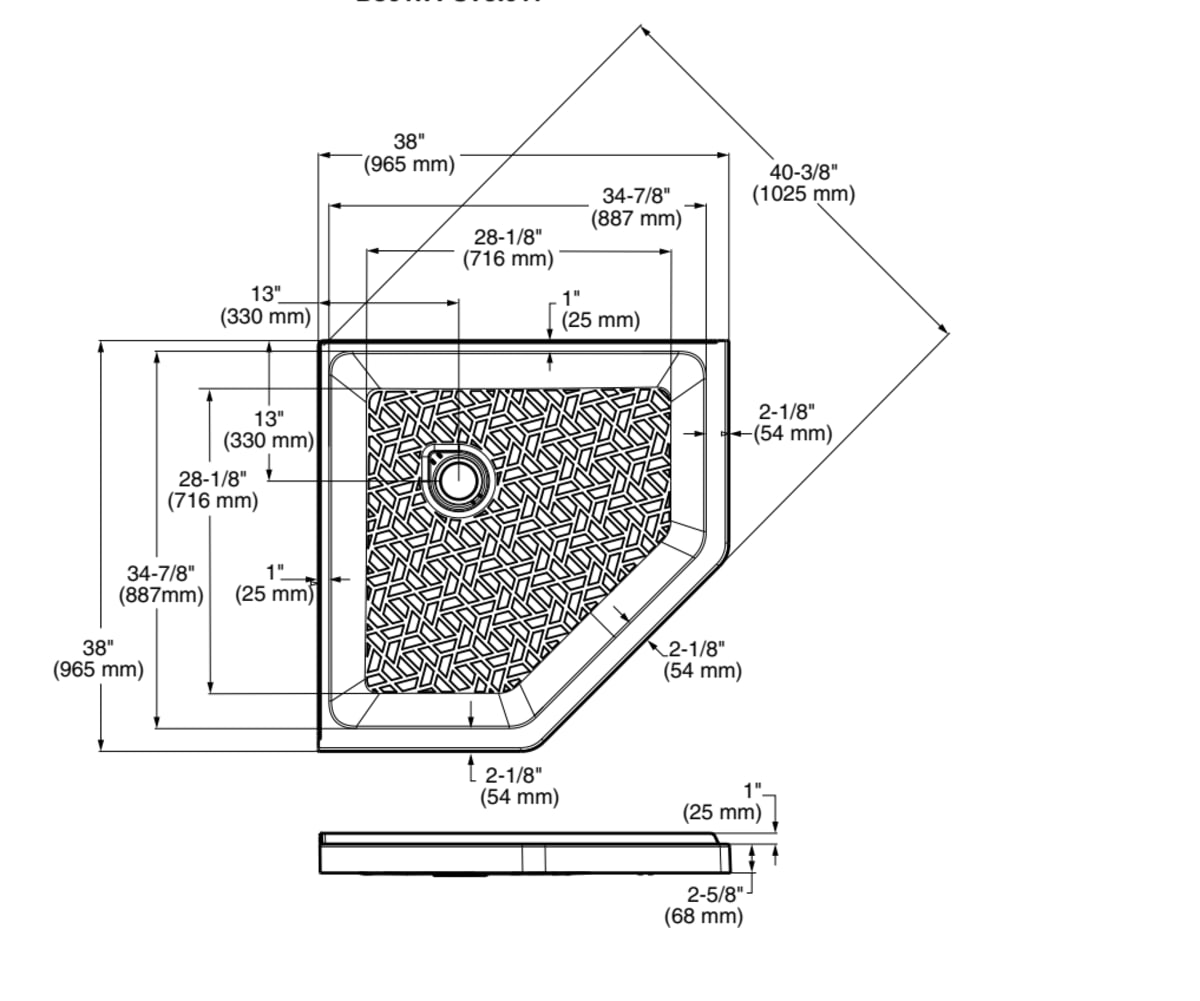

Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Strong and Durable — Premium StruXure® material resists peeling & chipping
- Easy Installation – Preformed Duracomb support base eliminates the need for mortar and has a maximum weight support of 300 lbs.
- No-Slip Floor — Textured surface provides sure-footed confidence
- 10-Year Warranty — Your assurance of quality construction and lasting beauty
- Dimensions — 38 x 38 x 2-3/4; please refer to specification sheet for exact dimensions and installation information
- Add a Door —The Ovation Curve angled door is engineered to fit the Ovation Curve neo-angle base perfectly. Model number AM00847400, sold separately
- Add Optional Walls — Finish your shower update with your favorite tile or the Ovation Curve large subway tile patterned wall system. Model number 2961SWT38.011, sold separately
- Dimensions — 38 x 38 x 2-3/4
- please refer to specification sheet for exact dimensions and installation information
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 38.834 lbs |
| Shipping Length | 39.625 in |
| Shipping Width | 39.812 in |
| Shipping Height | 4.375 in |
| Cartons | 1 |
| Pieces | 1 |
| Packaging Volume | 3.99 ft³ (0.11 m³) |
| Stackable | No |
Documents & Downloads
Project Information & Notes
Project:
Contractor:
Representative:
Date:
Tel:
Notes:
10-year residential warranty · 10-year commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
