American Standard® · Technical Data Sheet

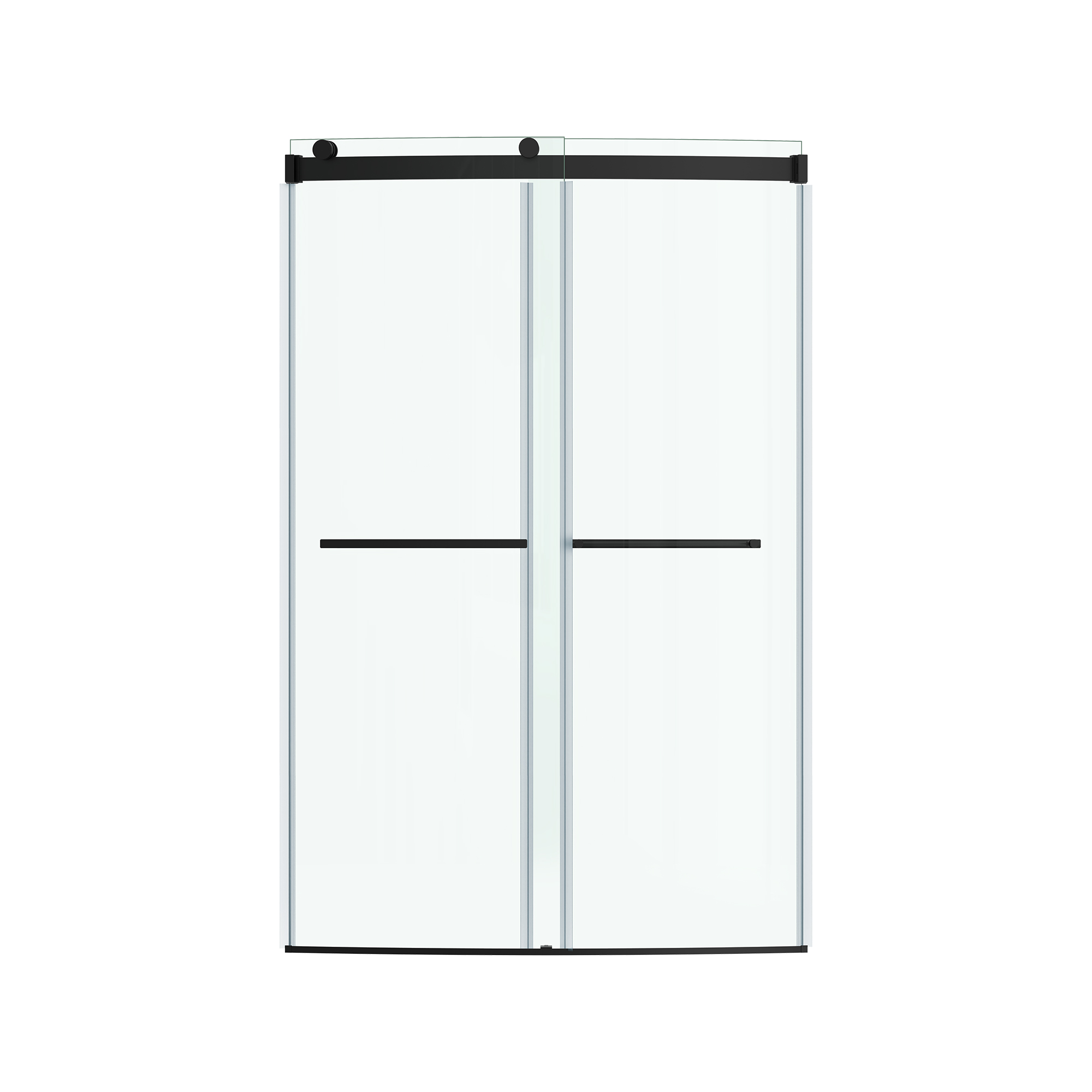

OVATION CURVE 48X72 BARN SHOWER DOOR, BN
The American Standard OVATION CURVE 48X72 BARN SHOWER DOOR, BN delivers a clean frameless aesthetic with 1/4-inch (6 mm) safety-tempered clear glass. Barn-style top rollers provide smooth, quiet operation with no obstructive bottom track. Backed by a 10-year warranty.
Specifications
| Model / Order # | AM00845400 |
|---|---|
| Collection | Ovation Curve |
| Family | OVATION |
| Series | AS SHOWER DOORS |
| Material | Glass |
| Finish / Color | Silver Shine |
| Door Type | Bypass |
| Frame Type | Frameless |
| Glass Pattern | Clear |
| Country of Origin | China |
| Residential Warranty | 10-year |
| Commercial Warranty | 10-year |
| Availability | Ships Free - in 2-3 weeks |
Dimensions & Capacity
| Nominal Length | 48 in |
|---|---|
| Nominal Width | 48 in |
| Nominal Height | 72 in |
| Glass Thickness | 0.25 in |
| Glass Type | Clear Tempered |
| Drain Included | No |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Frameless design: sleek, modern glass-forward aesthetic that opens up the bathroom and creates a spa-like atmosphere
- Safety-tempered glass: 1/4-inch (6 mm) tempered clear glass meets ANSI Z97.1 safety standards for shatter resistance
- Barn-style top-roller operation: smooth-glide top rollers ensure quiet, dependable sliding action with no bottom track obstruction
- Generous dimensions: 48 x 72-inch width x height fits standard shower openings
- Crystal-clear glass: water-clear transparency showcases tile work and creates an open, airy feel in the bathroom
- Dual-opening operation: doors slide open from both sides for flexible, convenient entry from either direction
- No bottom track: top-roller barn-style design eliminates the lower track for easier cleaning and a more open floor appearance
- Precision manufacturing: components are factory-engineered to fit standard rough openings with minimal field adjustment
- Quality hardware: durable handles and hinges are engineered for thousands of open-and-close cycles
Available Finishes
| Silver Shine | AM00845400.213 · UPC 193406241563 |
|---|---|
| Matte Black | AM00845400.243 · UPC 193406242010 |
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 91.882 lbs |
| Shipping Length | 27.375 in |
| Shipping Width | 4.5 in |
| Shipping Height | 76.375 in |
| Cartons | 1 |
| Packaging Volume | 5.45 ft³ (0.15 m³) |
| Stackable | No |
Documents & Downloads
Project Information & Notes
Project:
Contractor:
Representative:
Date:
Tel:
Notes:
10-year residential warranty · 10-year commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
