American Standard® · Technical Data Sheet

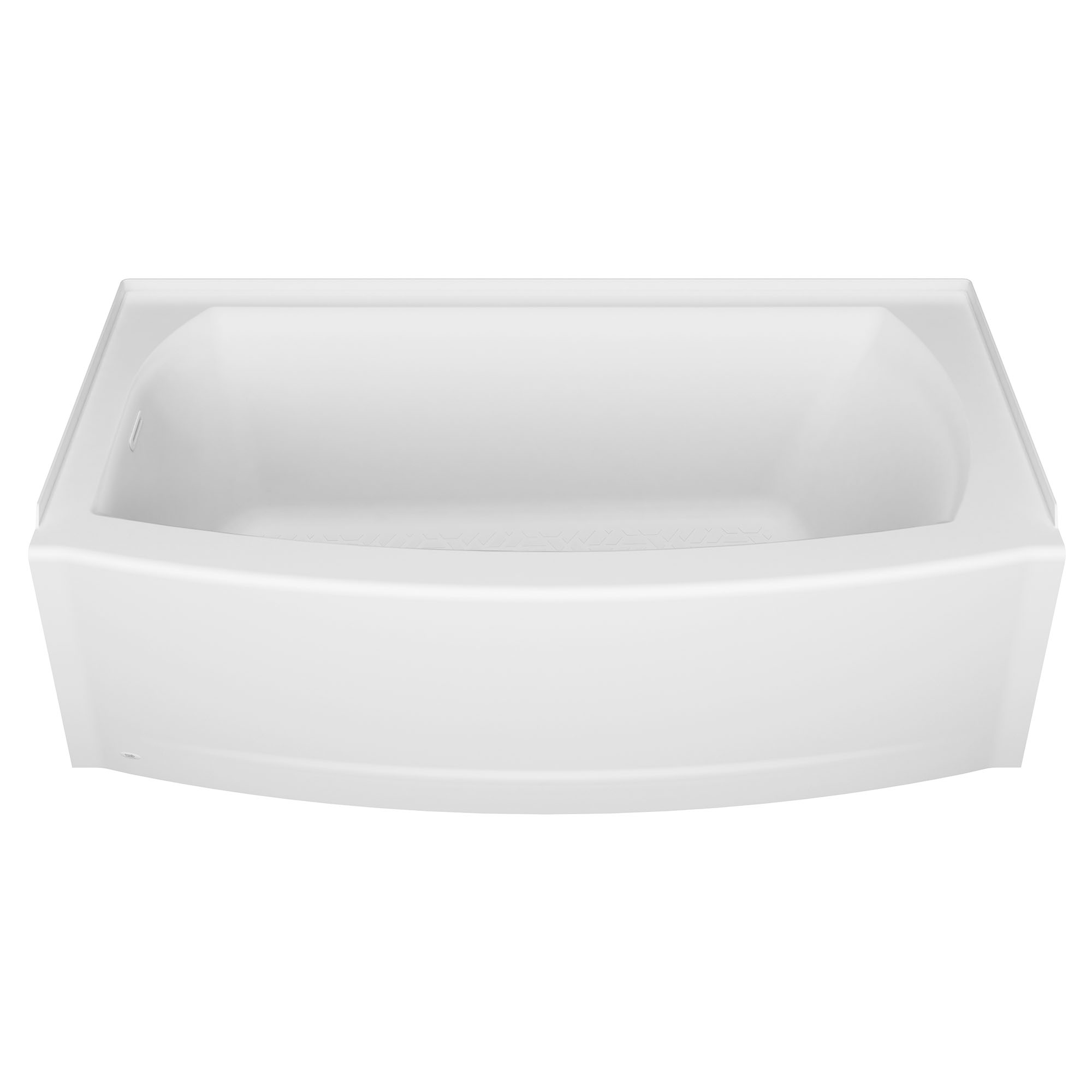

Ovation Curve 60x30-inch Integral Apron Bathtub with Left-hand Outlet with Deep Soak Drain
The American Standard Ovation Curve 60x30-inch Integral Apron Bathtub with Left-hand Outlet with Deep Soak Drain delivers a clean alcove look with the durability and performance your renovation demands. The integral apron front and three-sided tiling flange create a finished, water-tight fit in standard alcove openings. Backed by a 10-year warranty.
Specifications
| Model / Order # | 2576212S |
|---|---|
| Collection | Ovation Curve |
| Family | UNIVERSAL/ NO FAMILY |
| Series | SMC |
| Material | SMC |
| Color | Arctic |
| Installation Type | Alcove |
| Shape | Rectangular |
| Country of Origin | Mexico |
| Residential Warranty | 10-year |
| Commercial Warranty | 10-year |
| Availability | Ships Free - in 3-4 weeks |
Dimensions & Capacity
| Nominal Length | 60 in |
|---|---|
| Nominal Width | 30 in |
| Nominal Height | 18 in |
| Water Depth | 14 in |
| Drain Position | Left |
| Drain Included | Yes |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Premium materials: Premium StruXure composite material: resists peeling, chipping, and fading for long-lasting beauty
- Alcove installation: integral apron front creates a polished built-in appearance with integral 3-sided tiling flange for water protection
- Deep soaking comfort: 14-inch water depth delivers ample coverage for a relaxing soak
- Spacious dimensions: 60 x 30-inch footprint for a comfortable bathing experience
- Deep Soak design: maximized water depth allows for complete full-body immersion for the ultimate soaking experience
- Safety-focused design: textured floor surface provides added protection against slipping during use
- Three-sided tile flange: integral 1-inch water retention flange on three sides protects walls and simplifies installation
- Left-hand drain outlet: pre-positioned drain simplifies rough-in plumbing during installation
- Clean profile: refined exterior lines complement a wide range of bathroom tile and fixture finishes
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 56.42 lbs |
| Shipping Length | 62.063 in |
| Shipping Width | 36.063 in |
| Shipping Height | 19.375 in |
| Cartons | 1 |
| Packaging Volume | 25.1 ft³ (0.71 m³) |
| Stackable | No |
Documents & Downloads
Project Information & Notes
Project:
Contractor:
Representative:
Date:
Tel:
Notes:
10-year residential warranty · 10-year commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
