American Standard® · Technical Data Sheet

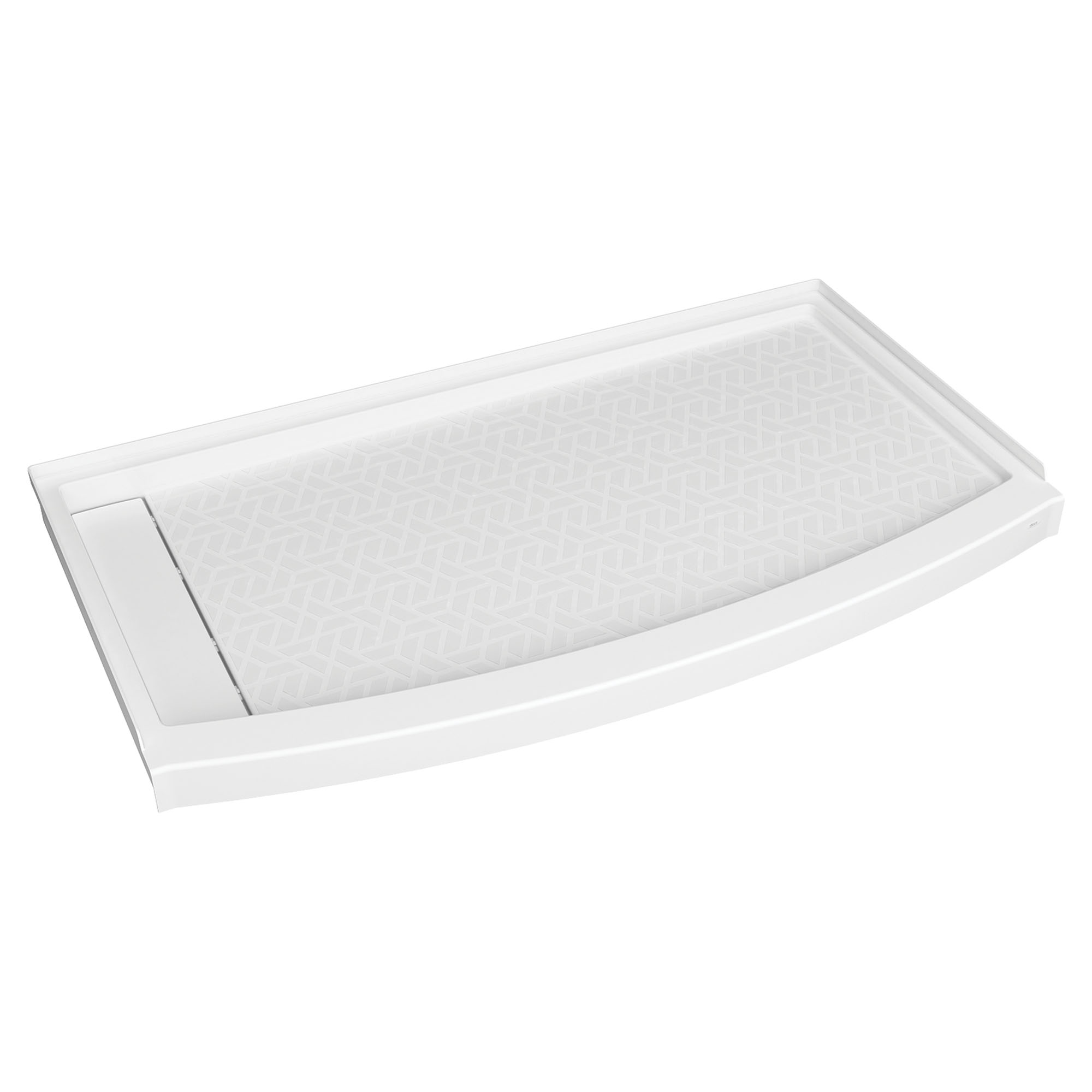

Ovation Curve 60X30-inch Shower Base with Left-hand Outlet
The American Standard Ovation Curve 60X30-inch Shower Base with Left-hand Outlet features a premium StruXure material that resists peeling and chipping while the preformed Duracomb support base eliminates mortar prep and supports up to 300 lbs. The curved front edge maximizes comfort and shower entry ease. Backed by a limited lifetime warranty.
Specifications
| Model / Order # | B8014A-ST3L |
|---|---|
| Collection | Ovation Curve |
| Family | OVATION |
| Series | SMC |
| Material | SMC |
| Color | Arctic |
| Installation Type | Alcove |
| Shape | Curved |
| Country of Origin | Mexico |
| Residential Warranty | Limited Lifetime |
| Commercial Warranty | Lifetime |
| Availability | Ships 1-3 Business Days |
Dimensions & Capacity
| Nominal Length | 60 in |
|---|---|
| Nominal Width | 30 in |
| Nominal Height | 3 in |
| Drain Position | Left |
| Drain Included | No |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Strong and Durable — Premium StruXure® material resists peeling & chipping
- Easy Installation – Preformed Duracomb support base eliminates the need for mortar and has a maximum weight support of 300 lbs.
- No-Slip Floor — Textured surface provides sure-footed confidence
- Perfect Fit — Versatile curved design works for 30”- 36” alcoves
- 10-Year Warranty — Your assurance of quality construction and lasting beauty
- Dimensions – 60 x 30 x 3; please refer to specification sheet for exact dimensions and installation information
- Add a Door — When adding a door, this shower base requires the Ovation Curve curved barn-style door, designed exclusively for use with the Ovation Curve base and engineered to fit perfectly. Model number AM00844400, sold separately
- Add Optional Walls — Finish your shower update with your favorite tile or the Ovation Curve large subway tile patterned wall system. Model number 2961SWT60.011, sold separately
- Dimensions – 60 x 30 x 3
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 53.848 lbs |
| Shipping Length | 61.625 in |
| Shipping Width | 35.75 in |
| Shipping Height | 4.625 in |
| Cartons | 1 |
| Pieces | 1 |
| Packaging Volume | 5.9 ft³ (0.17 m³) |
| Stackable | No |
Documents & Downloads
Project Information & Notes
Project:
Contractor:
Representative:
Date:
Tel:
Notes:
Limited Lifetime residential warranty · Lifetime commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
