American Standard® · Technical Data Sheet

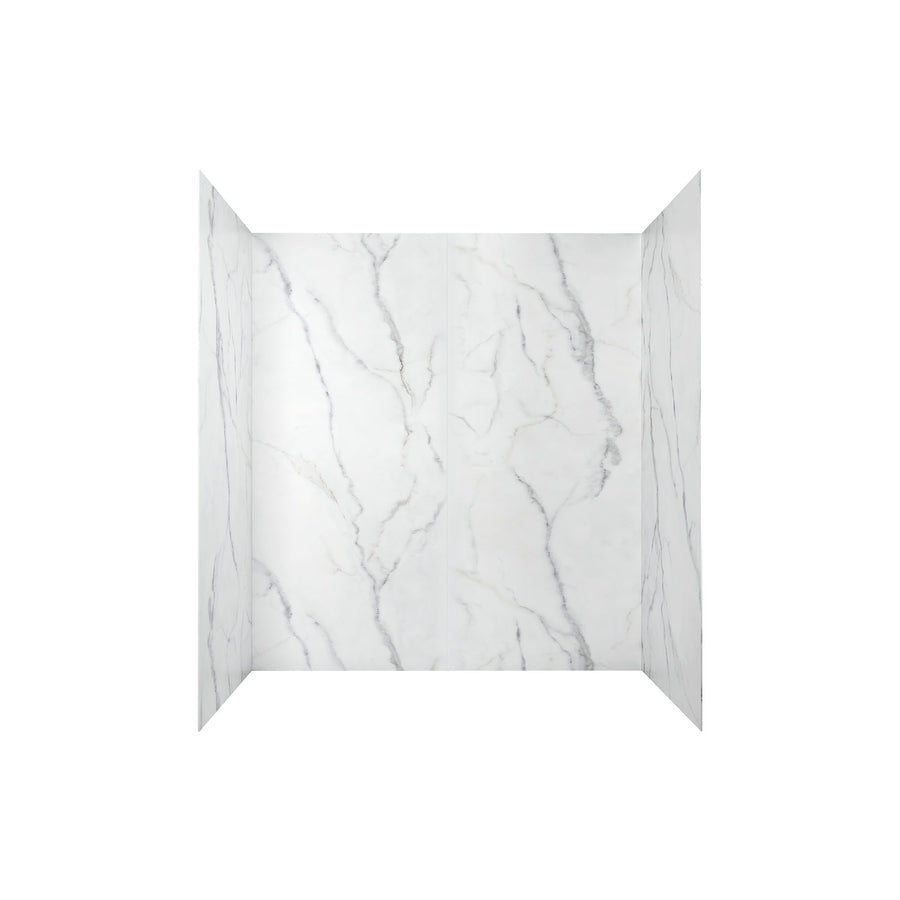

Passage 60 x 32 x 60-Inch Bath Wall Set
Give your bathroom a fresh update with the Passage Bath Wall system from American Standard. Decorative wall panels in today’s most popular patterns are the perfect alternative to tile and grout. Easy to install, these durable, pre-cut panels adhere securely to waterproof wall-board for lasting beauty and wipe clean convenience.
Specifications
| Model / Order # | P2974BWT |
|---|---|
| Collection | Passage |
| Family | PASSAGE |
| Series | PREMIUM BATHING |
| Material | Composite |
| Color | Platinum Marble |
| Installation Type | Alcove |
| Shape | Rectangular |
| Country of Origin | Mexico |
| Residential Warranty | 10-year |
| Commercial Warranty | 10-year |
Dimensions & Capacity
| Nominal Length | 60 in |
|---|---|
| Nominal Width | 32 in |
| Nominal Height | 60 in |
| Drain Included | No |
Dimensional Drawing
Features & Benefits
- Custom look – Instantly elevate your bathroom style
- Quick installation – Pre-cut four-piece system glues to water-resistant wall board
- Trim to fit – Can easily be trimmed if walls are not perfectly plumb
- High-quality laminate – Adheres to water-resistant wall board with waterproof adhesive
- Tongue and groove – Back panels fit together seamlessly for professional results
- Easy to clean – Smooth surface wipes clean; no grout to maintain
- Finished edge – Rounded bull-nose edge for a polished, custom finish
- Includes – 2 side panels measuring 32 in. x 60 in., and a 2-piece back panel with finished measurement of 60 in. x 60 in.
- 10-Year limited warranty – Buy with confidence
Available Finishes
| Platinum Marble | P2974BWT.374 · UPC 791556112209 |
|---|---|
| Serene Marble | P2974BWT.377 · UPC 193406036190 |
| Powder Marble | P2974BWT.371 · UPC 791556112230 |
| Gray Concrete | P2974BWT.372 · UPC 791556112223 |
| Gray Timber | P2974BWT.373 · UPC 791556112216 |
| Pewter Travertine | P2974BWT.370 · UPC 791556112247 |
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 93.985 lbs |
| Shipping Length | 61.625 in |
| Shipping Width | 33.625 in |
| Shipping Height | 3.063 in |
| Stackable | Yes |
Documents & Downloads
Project Information & Notes
Project:
Contractor:
Representative:
Date:
Tel:
Notes:
10-year residential warranty · 10-year commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
