American Standard® · Technical Data Sheet

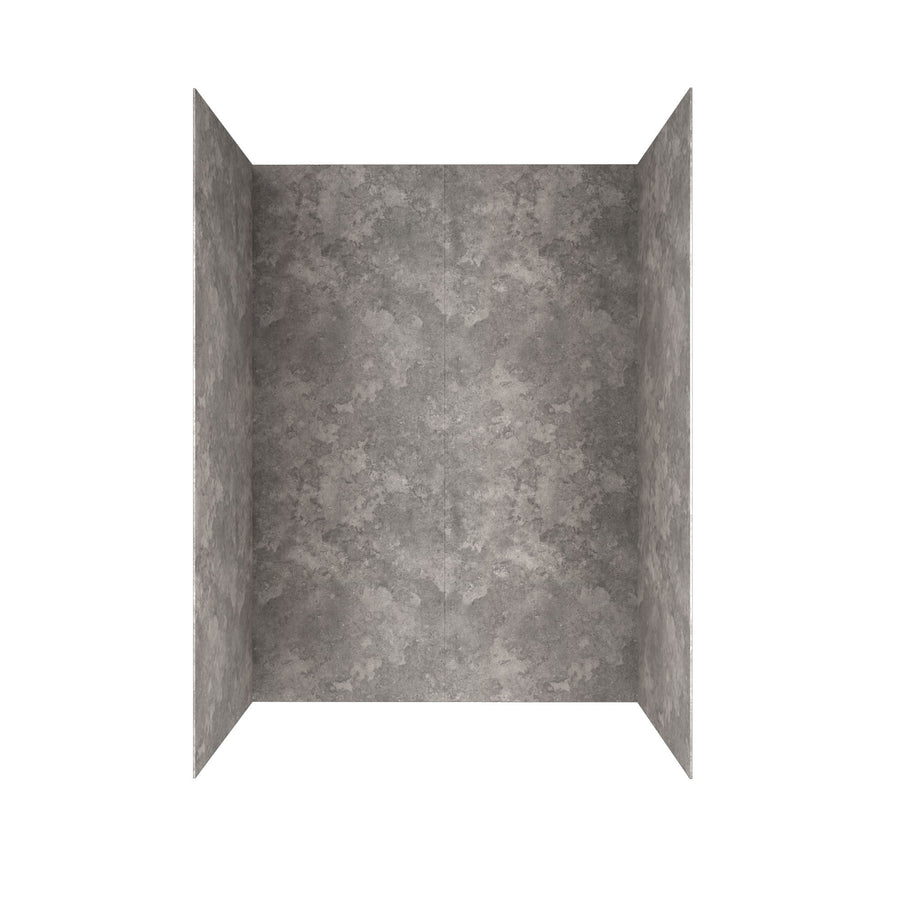

Passage 60 x 32 x 72-Inch Shower Wall Set
Give your bathroom a fresh update with the Passage Alcove Shower Wall system from American Standard. Decorative wall panels in today’s most popular patterns are the perfect alternative to tile and grout. Easy to install, these durable, pre-cut panels adhere securely to waterproof wall-board for lasting beauty and wipe clean with ease. Create a complete makeover with coordinating Passage shower door, shower base, and shower shelves.
Specifications
| Model / Order # | P2971SWT |
|---|---|
| Collection | Passage |
| Family | PASSAGE |
| Series | PREMIUM BATHING |
| Material | Composite |
| Color | Gray Subway Tile |
| Installation Type | Alcove |
| Shape | Rectangular |
| Country of Origin | Mexico |
| Residential Warranty | Limited Lifetime |
| Commercial Warranty | Lifetime |
Dimensions & Capacity
| Nominal Length | 60 in |
|---|---|
| Nominal Width | 32 in |
| Nominal Height | 72 in |
| Drain Included | No |
Features & Benefits
- Custom look – Instantly elevate your bathroom style
- Quick installation – Pre-cut four-piece system glues to water-resistant wall board
- Trim to fit – Can easily be trimmed if walls are not perfectly plumb
- High-quality laminate – Adheres to water-resistant wall board with waterproof adhesive
- Tongue and groove – Back panels fit together seamlessly for professional results
- Easy to clean – Smooth surface wipes clean; no grout to maintain
- Finished edge – Rounded bull-nose edge for a polished, custom finish
- Includes – 2 side panels measuring 32 in. x 72 in., and a 2-piece back panel with finished measurement of 60 in. x 72 in.
- 10-Year limited warranty – Buy with confidence
Available Finishes
| Gray Subway Tile | P2971SWT.376 · UPC 193406034868 |
|---|---|
| Platinum Marble | P2971SWT.374 · UPC 791556112254 |
| Gray Concrete | P2971SWT.372 · UPC 791556112278 |
| Powder Marble | P2971SWT.371 · UPC 791556112285 |
| Serene Marble | P2971SWT.377 · UPC 193406034998 |
| Gray Timber | P2971SWT.373 · UPC 791556112261 |
| Pewter Travertine | P2971SWT.370 · UPC 791556112292 |
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 113 lbs |
| Shipping Length | 73.625 in |
| Shipping Width | 33.625 in |
| Shipping Height | 3.063 in |
| Stackable | Yes |
Documents & Downloads
Project Information & Notes
Project:
Contractor:
Representative:
Date:
Tel:
Notes:
Limited Lifetime residential warranty · Lifetime commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
