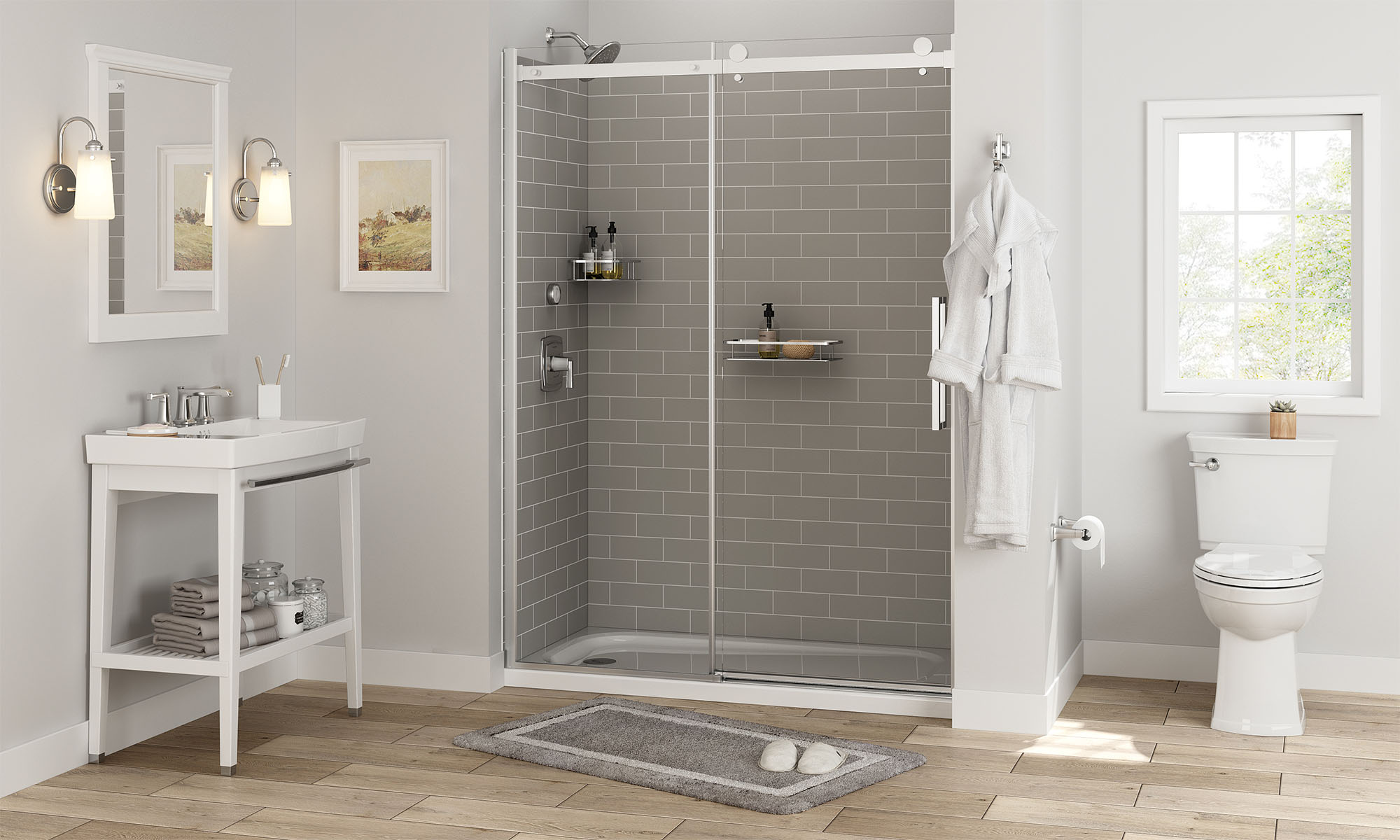

Passage 60 x 32 x 72-Inch Subway Shower Wall Set
The American Standard Passage subway tile shower wall set provides a stylish, low-maintenance alternative to tile with its subway tile pattern. The multi-piece glue-up system installs without tiling or grouting, and panels can be trimmed for a custom fit. Backed by a 15-year warranty.
Specifications
| Model / Order # | P2969SWT |
|---|---|
| Collection | Passage |
| Family | PASSAGE |
| Series | ACRYLICS |
| Material | Acrylic capped ABS |
| Finish / Color | White Subway Tile |
| Installation Type | Glue-up |
| Shape | Rectangular |
| Country of Origin | USA |
| Residential Warranty | 15-year |
| Commercial Warranty | 1-year |
| Availability | Ships within 7 business days |
Dimensions & Capacity
| Nominal Length | 60 in |
|---|---|
| Nominal Width | 32 in |
| Nominal Height | 72 in |
| Drain Included | No |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Clean, classic look – Subway tile pattern without grout maintenance
- High-quality – Multi-layer acrylic adheres to water-resistant wall board with waterproof adhesive
- Quick installation – Pre-cut four-piece system for a perfect fit
- Trim to fit – Can easily be trimmed for use as a bathtub surround or if walls are not perfectly plumb
- Easy to clean – Smooth surface wipes clean; no grout to maintain
- Includes – 2 side panels measuring 32 in. x 72 in., and a 2-piece back panel with finished measurement of 60 in. x 72 in.
- 10-Year limited warranty – Buy with confidence
- Coordinated collection – Pairs perfectly with Passage Shower Door, Passage Shower Base, and Passage Shower Shelves
- no grout to maintain
Available Finishes
| White Subway Tile | P2969SWT.375 · UPC 193406035865 |
|---|---|
| Gray Subway Tile | P2969SWT.376 · UPC 193406036077 |
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 55.336 lbs |
| Shipping Length | 73.374 in |
| Shipping Width | 32.189 in |
| Shipping Height | 2.217 in |
| Cartons | 1 |
| Pieces | 4 |
| Packaging Volume | 3.03 ft³ (0.09 m³) |
| Full-Truckload Qty | 803 |
| Stackable | Yes |
Installation
Items required for installation
PPE, Level, Measuring Tape, Screws, Fender Washers, Screwdriver, Waste & Overflow Drain Kit (Metal or plastic), Plumber's Putty, Floor Levelling Compound & Trowel (if required)
Documents & Downloads
Certifications & Compliance
Project Information & Notes
15-year residential warranty · 1-year commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
