American Standard® · Technical Data Sheet

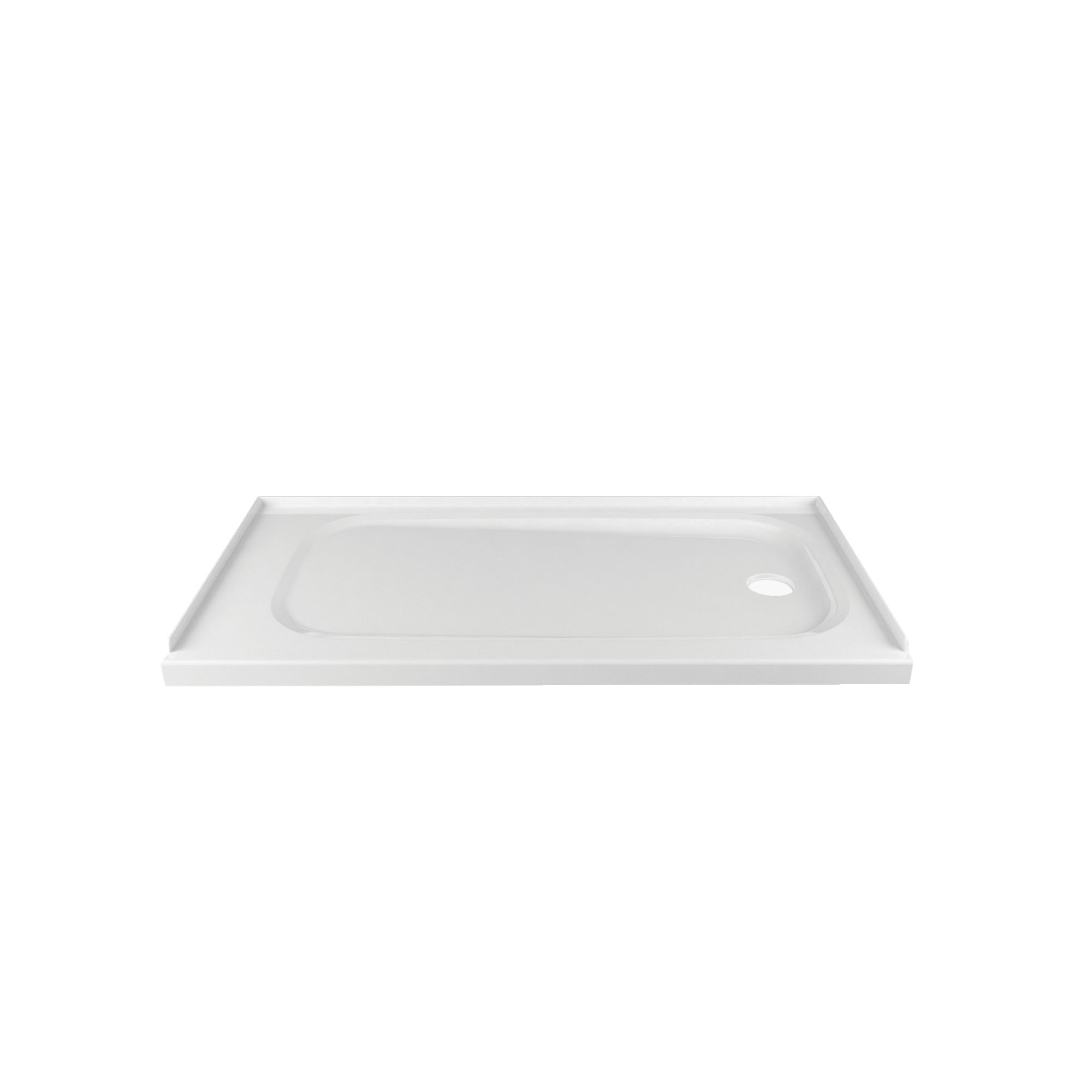

Passage 60x32-inch Low Threshold Shower Base - Right Hand Drain
The American Standard Passage 60x32-inch Low Threshold Shower Base - Right Hand Drain shower base provides lasting, reliable performance with a non-porous, easy-clean surface and low 2.25-inch threshold for safe, comfortable access. ADA-compliant for accessible design. Backed by a limited lifetime warranty.
Specifications
| Model / Order # | A8011T-RHO |
|---|---|
| Collection | Passage |
| Family | PASSAGE |
| Series | ACRYLICS |
| Material | Acrylic |
| Finish / Color | White |
| Installation Type | Alcove |
| Shape | Rectangular |
| Country of Origin | Mexico |
| Residential Warranty | Limited Lifetime |
| Commercial Warranty | Lifetime |
| Availability | Contact Customer Service for availability |
Dimensions & Capacity
| Nominal Length | 60 in |
|---|---|
| Nominal Width | 32 in |
| Drain Position | Right |
| Drain Included | No |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Durable design – Made of acrylic with fiberglass reinforcement for stability
- Threshold safety - Low 2-1/4" height for easy entry and exit
- Storage space - Deck platform creates storage for showering essentials
- Textured floor – Helps to prevent slips and falls
- Tiling/water retention flange – Helps prevent water damage
- End drain outlet – Optimized water drainage
- Shower drain - Sold separately
- 10-Year limited warranty – Buy with confidence
- Coordinated collection – Pairs perfectly with Passage Shower Walls, Passage Shower Door, and Passage Shower Shelves
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 53.548 lbs |
| Shipping Length | 62.438 in |
| Shipping Width | 34.813 in |
| Shipping Height | 4.188 in |
| Cartons | 1 |
| Pieces | 1 |
| Packaging Volume | 5.27 ft³ (0.15 m³) |
| Stackable | No |
Documents & Downloads
Project Information & Notes
Project:
Contractor:
Representative:
Date:
Tel:
Notes:
Limited Lifetime residential warranty · Lifetime commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
