American Standard® · Technical Data Sheet

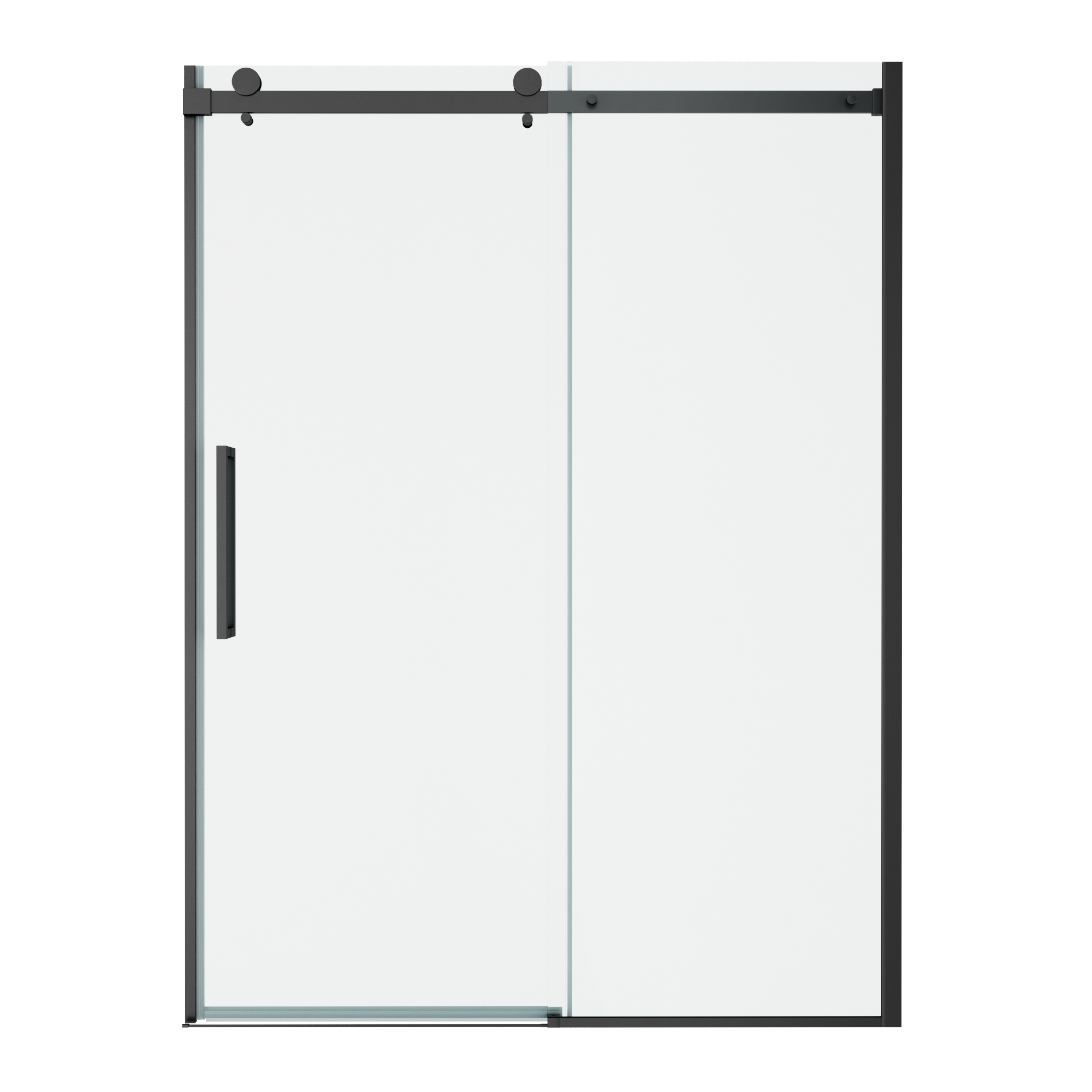

Passage 72-Inch High Semi-Frameless Top-Roller Sliding Shower Door
The American Standard Passage 72-Inch High Semi-Frameless Top-Roller Sliding Shower Door delivers quality construction and reliable performance with 1/4-inch (6 mm) safety-tempered clear glass. Top rollers ensure smooth, dependable sliding operation. Dual-opening doors offer installation flexibility. Backed by a limited lifetime warranty.
Specifications
| Model / Order # | AM801703400 |
|---|---|
| Collection | Passage |
| Family | PASSAGE |
| Series | AS SHOWER DOORS |
| Material | Glass |
| Finish / Color | Matte Black |
| Installation Type | Alcove |
| Door Type | Sliding |
| Frame Type | Semi-Frameless |
| Country of Origin | China |
| Residential Warranty | Limited Lifetime |
| Commercial Warranty | Lifetime |
| Availability | Ships Free - in 2-3 weeks |
Dimensions & Capacity
| Nominal Length | 60 in |
|---|---|
| Nominal Width | 57 in |
| Nominal Height | 79.1732283464567 in |
| Glass Thickness | 0.3125 in |
| Drain Included | No |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Semi-frameless construction: minimal metal framing on outer edges provides structural support while maintaining a clean, open look
- Safety-tempered glass: 1/4-inch (6 mm) tempered clear glass meets ANSI Z97.1 safety standards for shatter resistance
- Top-roller sliding design: quality top rollers provide quiet, dependable operation with easy open-and-close action
- Generous dimensions: 60 x 79.17-inch width x height fits standard shower openings
- Crystal-clear glass: water-clear transparency showcases tile work and creates an open, airy feel in the bathroom
- Dual-opening operation: doors slide open from both sides for flexible, convenient entry from either direction
- Easy-clean bottom track: open bottom track design resists mold and mildew buildup and is simple to wipe clean
- Precision manufacturing: components are factory-engineered to fit standard rough openings with minimal field adjustment
- Quality hardware: durable handles and hinges are engineered for thousands of open-and-close cycles
Available Finishes
| Matte Black | AM801703400.243 · UPC 193406254495 |
|---|---|
| Silver Shine | AM801703400.213 · UPC 791556112438 |
| Brushed Nickel | AM801703400.295 · UPC 193406254648 |
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 167.35 lbs |
| Shipping Length | 43.125 in |
| Shipping Width | 4.313 in |
| Shipping Height | 75.375 in |
| Cartons | 1 |
| Pieces | 1 |
| Packaging Volume | 8.11 ft³ (0.23 m³) |
| Stackable | No |
Documents & Downloads
Project Information & Notes
Project:
Contractor:
Representative:
Date:
Tel:
Notes:
Limited Lifetime residential warranty · Lifetime commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
