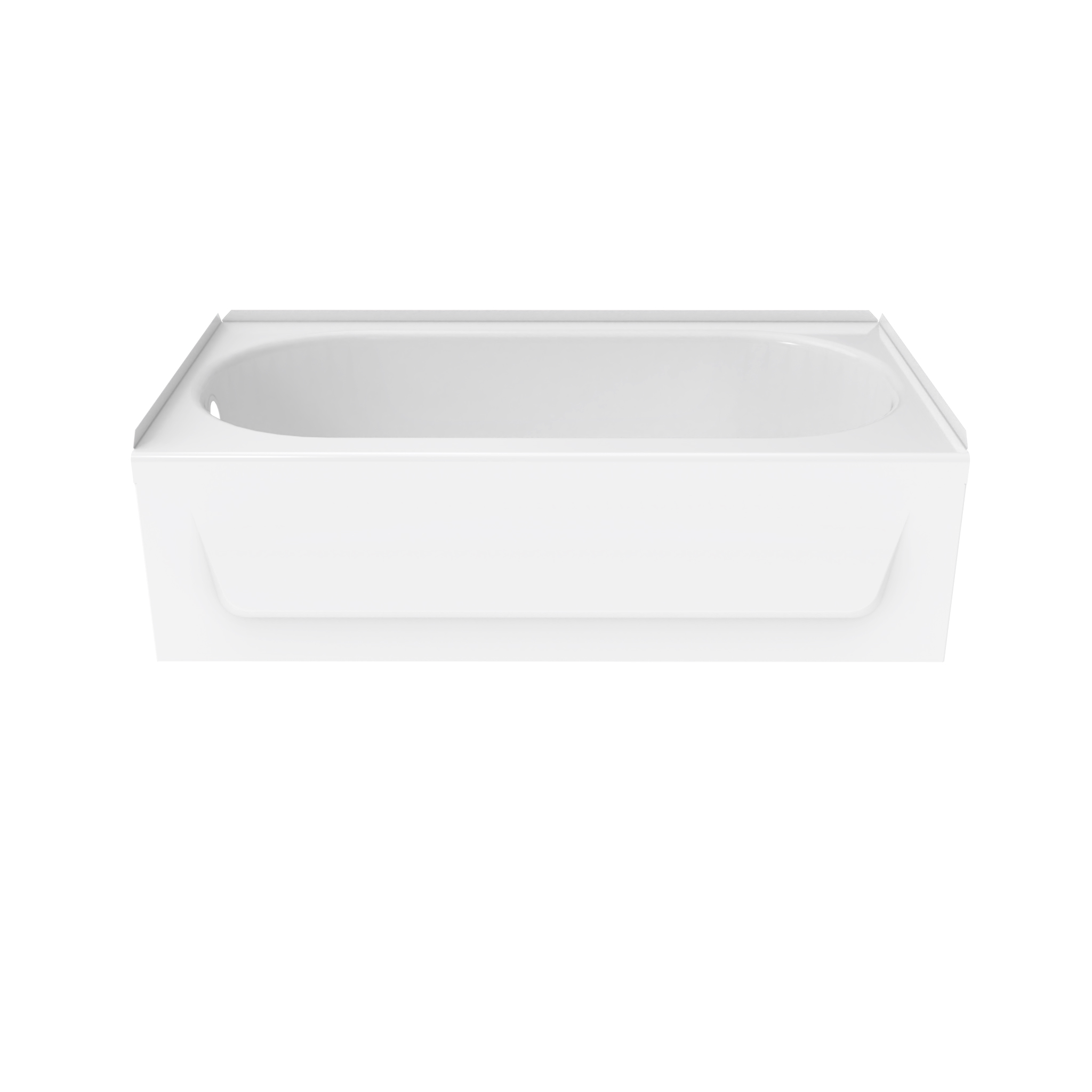

Princeton Americast 54 x 30 Alcove Bathtub
The American Standard Princeton Americast 54 x 30 Alcove Bathtub delivers a clean alcove look with the durability and performance your renovation demands. The integral apron front and three-sided tiling flange create a finished, water-tight fit in standard alcove openings. Americast technology provides exceptional strength with superior heat retention over conventional materials. Backed by a limited lifetime warranty.
Specifications
| Model / Order # | AS010004 |
|---|---|
| Collection | Americast |
| Family | Princeton |
| Series | Professional |
| Material | Americast |
| Finish / Color | White |
| Installation Type | Alcove |
| Shape | Rectangular |
| Country of Origin | USA |
| Residential Warranty | Lifetime |
| Commercial Warranty | 3-year |
| Availability | Ships within 7 business days |
Dimensions & Capacity
| Nominal Length | 54 in |
|---|---|
| Nominal Width | 30 in |
| Nominal Height | 16 in |
| Water Depth | 9.125 in |
| Water Capacity | 34 gal |
| Seating Capacity | 1 |
| Skirt Height | 15.25 in |
| Drain Clearance | 1.375 in |
| Drain Position | Left |
| Drain Size | 2.125 in |
| Drain Included | No |
| Overflow Included | No (Round) |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Premium materials: Americast engineered composite: patented steel core with porcelain enamel surface for exceptional strength and heat retention
- Alcove installation: integral apron front creates a polished built-in appearance with clean finished edges
- Deep soaking comfort: 9.12-inch water depth delivers ample coverage for a relaxing soak
- Spacious dimensions: 54 x 30-inch footprint and holds up to 34 gallons for a comfortable bathing experience
- Slip-resistant floor: textured bottom surface provides confident footing for safer bathing entry and exit
- Installation ready: engineered for straightforward installation with standard tools and hardware
- Standard drain opening: compatible with most 1.5-2 inch waste and overflow drain assemblies
- Clean profile: refined exterior lines complement a wide range of bathroom tile and fixture finishes
- High-gloss finish: non-porous, bright surface reflects light beautifully and cleans easily
Available Finishes
| White | 3389202.020 · UPC 8792900775 |
|---|---|
| White | 3388202.020 · UPC 8792900768 |
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 77 lbs |
| Shipping Length | 55.5 in |
| Shipping Width | 32 in |
| Shipping Height | 17.5 in |
| Cartons | 1 |
| Pieces | 1 |
| Packaging Volume | 17.99 ft³ (0.51 m³) |
| Full-Truckload Qty | 166 |
| Stackable | Y |
Installation
Items required for installation
PPE, Level, Measuring Tape, Screws, Fender Washers, Screwdriver, Waste & Overflow Drain Kit (Metal or plastic), Plumber's Putty, Floor Levelling Compound & Trowel (if required)
Documents & Downloads
Certifications & Compliance
Project Information & Notes
Lifetime residential warranty · 3-year commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
