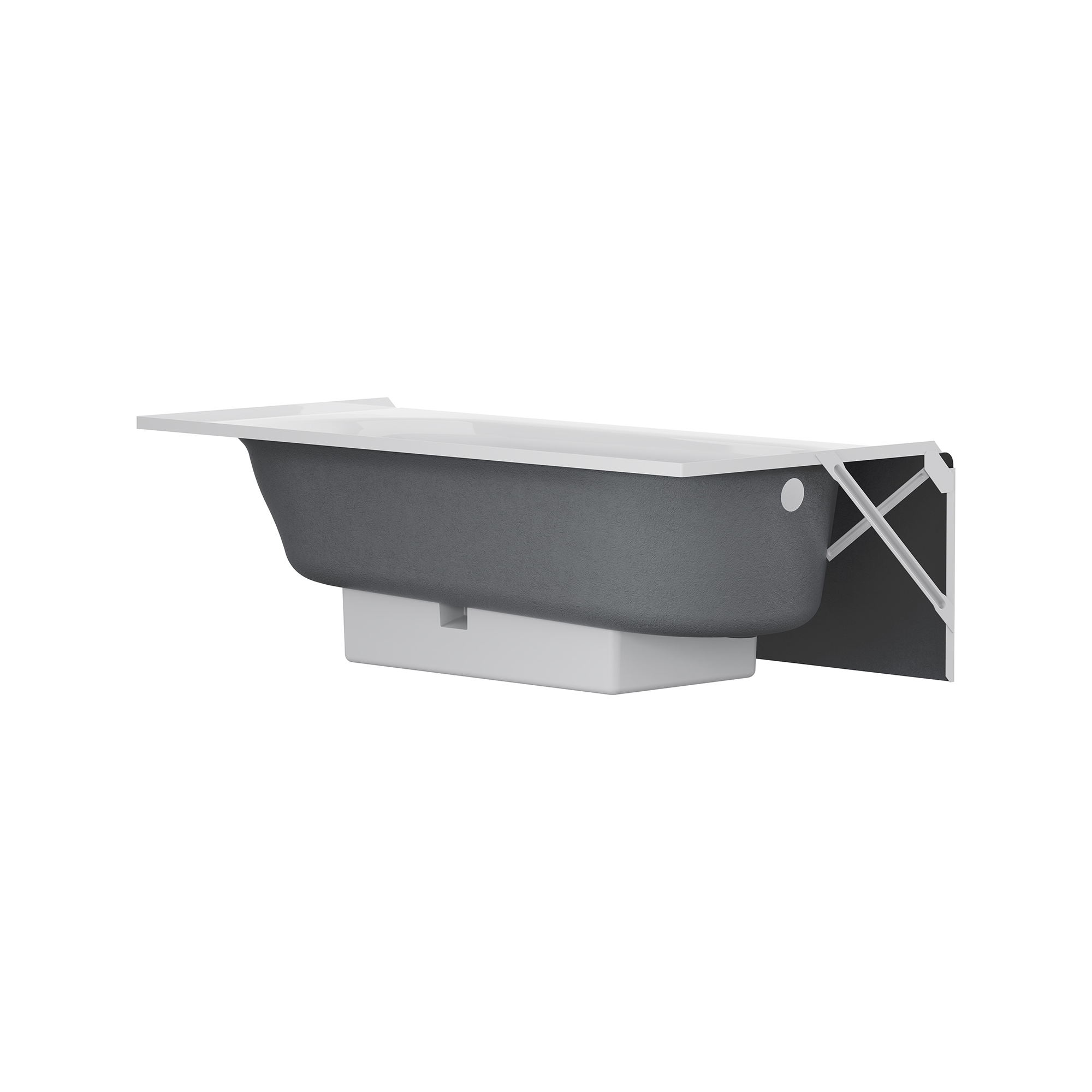

Princeton® PRO Steel 60 x 30-inch Above Floor Rough Integral Apron Bathtub with Left-Hand Outlet
The American Standard Princeton delivers a clean alcove look with the durability and performance your renovation demands. The above-floor-rough design eliminates drain relocation while the pre-leveled base ensures a quick, precise installation. Americast technology provides exceptional strength with superior heat retention over conventional materials. Backed by a limited lifetime warranty.
Specifications
| Model / Order # | 1392202 |
|---|---|
| Collection | Princeton Pro |
| Family | PRINCETON PRO |
| Series | ENAMEL STEEL |
| Material | Enamel Steel |
| Finish / Color | White |
| Installation Type | Alcove |
| Shape | Rectangular |
| Country of Origin | USA |
| Residential Warranty | Lifetime |
| Commercial Warranty | 3-year |
| Availability | Ships Free - in 3-4 weeks |
Dimensions & Capacity
| Nominal Length | 60 in |
|---|---|
| Nominal Width | 30 in |
| Nominal Height | 17.5 in |
| Water Depth | 9.5 in |
| Water Capacity | 42 gal |
| Seating Capacity | 1 |
| Skirt Height | 17.5 in |
| Drain Position | Left |
| Drain Size | 2.125 in |
| Drain Included | No |
| Overflow Included | No |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Premium materials: Americast engineered composite: patented steel core with porcelain enamel surface for exceptional strength and heat retention
- Above floor rough design: eliminates the need to relocate the drain, simplifying installation and saving time and money
- Deep soaking comfort: 9.5-inch water depth delivers ample coverage for a relaxing soak
- Spacious dimensions: 60 x 30-inch footprint and holds up to 42 gallons for a comfortable bathing experience
- ADA compliant: meets Americans with Disabilities Act requirements for accessible bathing spaces
- Pre-leveled base: built-in leveling support ensures accurate, hassle-free installation without requiring mortar
- Left-hand drain outlet: pre-positioned drain simplifies rough-in plumbing during installation
- Clean profile: refined exterior lines complement a wide range of bathroom tile and fixture finishes
- Classic white finish: timeless white color coordinates with a wide range of bathroom fixtures and tile
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 78.25 lbs |
| Shipping Length | 60.5 in |
| Shipping Width | 31.811 in |
| Shipping Height | 20.063 in |
| Cartons | 1 |
| Pieces | 1 |
| Packaging Volume | 22.35 ft³ (0.63 m³) |
| Full-Truckload Qty | 150 |
| Stackable | No |
Installation
Items required for installation
PPE, Level, Measuring Tape, Screws, Fender Washers, Screwdriver, Waste & Overflow Drain Kit (Metal or plastic), Plumber's Putty, Floor Levelling Compound & Trowel (if required)
Documents & Downloads
Certifications & Compliance
Project Information & Notes
Lifetime residential warranty · 3-year commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
