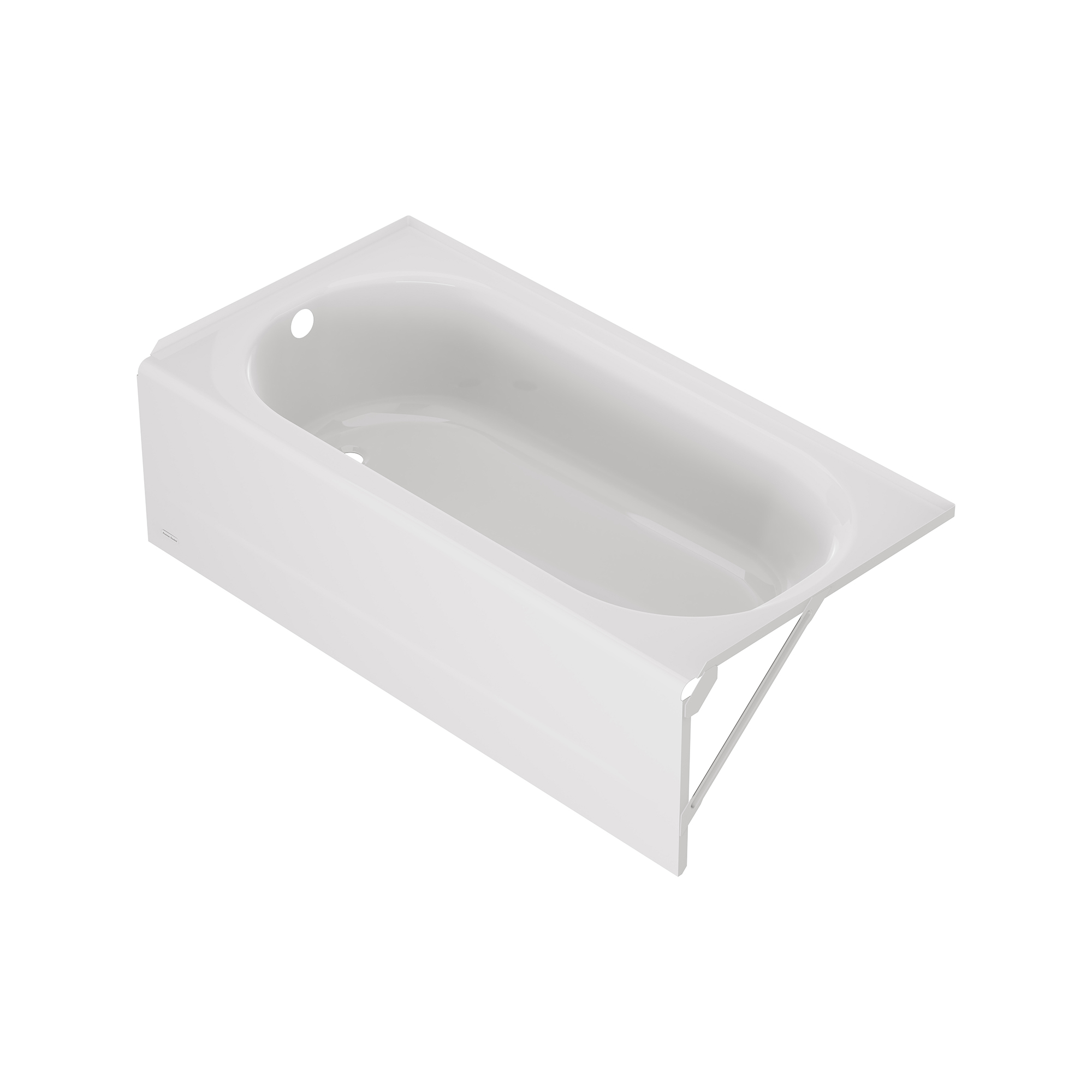

Princeton® PRO Steel 60 x 32-inch Integral Apron Bathtub with Left-Hand Outlet
The American Standard Princeton PRO delivers a clean alcove look with the durability and performance your renovation demands at an affordable price. Backed by a limited lifetime warranty.
Specifications
| Model / Order # | 1398202 |
|---|---|
| Collection | Princeton Pro |
| Family | Princeton |
| Series | ENAMEL STEEL |
| Material | Enamel Steel |
| Finish / Color | White |
| Installation Type | Alcove |
| Shape | Rectangular |
| Country of Origin | Mexico |
| Residential Warranty | Limited Lifetime |
| Commercial Warranty | 3-year |
| Availability | Ships Free - in 3-4 weeks |
Dimensions & Capacity
| Nominal Length | 60 in |
|---|---|
| Nominal Width | 30 in |
| Nominal Height | 14 in |
| Water Depth | 9.5 in |
| Water Capacity | 42 gal |
| Seating Capacity | 1 |
| Skirt Height | 14 in |
| Drain Position | Left |
| Drain Size | 2.125 in |
| Drain Included | No |
| Overflow Included | No |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Premium materials: Americast engineered composite: patented steel core with porcelain enamel surface for exceptional strength and heat retention
- High-gloss finish: non-porous, bright surface reflects light beautifully and cleans easily
- Comfortable bathing well: generous interior depth designed for full-body relaxation and comfortable soaking
- Spacious dimensions: 60 x 32-inch footprint for a comfortable bathing experience
- ADA compliant: meets Americans with Disabilities Act requirements for accessible bathing spaces
- Pre-leveled base: built-in leveling support ensures accurate, hassle-free installation without requiring mortar
- Left-hand drain outlet: pre-positioned drain simplifies rough-in plumbing during installation
- Clean profile: refined exterior lines complement a wide range of bathroom tile and fixture finishes
- High-gloss finish: non-porous, bright surface reflects light beautifully and cleans easily
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 73 lbs |
| Shipping Length | 60.5 in |
| Shipping Width | 31.811 in |
| Shipping Height | 20.063 in |
| Cartons | 1 |
| Pieces | 1 |
| Packaging Volume | 22.35 ft³ (0.63 m³) |
| Full-Truckload Qty | 166 |
| Stackable | Y |
Installation
Items required for installation
PPE, Level, Measuring Tape, Screws, Fender Washers, Screwdriver, Waste & Overflow Drain Kit (Metal or plastic), Plumber's Putty, Floor Levelling Compound & Trowel (if required)
Documents & Downloads
Certifications & Compliance
Project Information & Notes
Limited Lifetime residential warranty · 3-year commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
