American Standard® · Technical Data Sheet

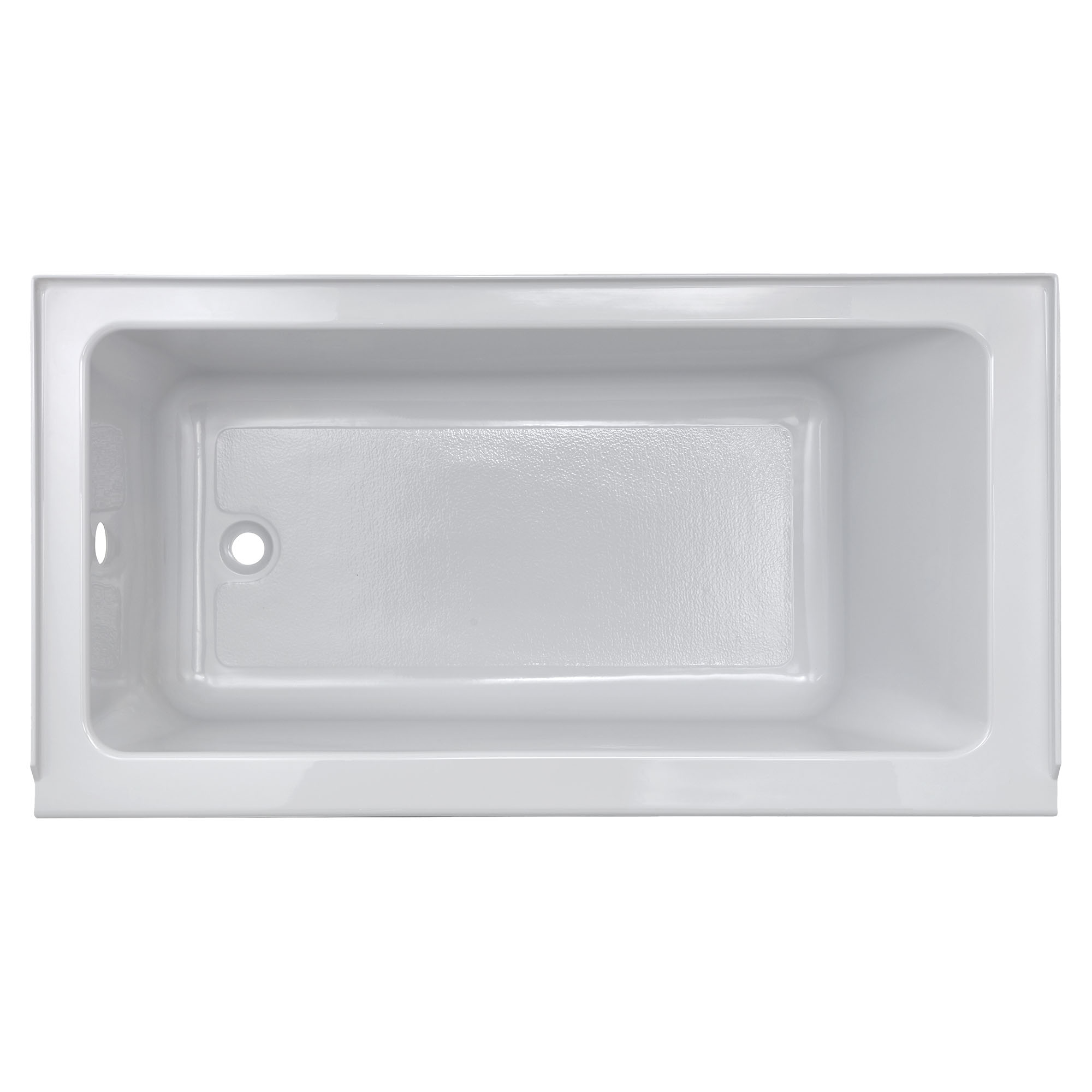

Studio 60 x 30-Inch Integral Apron Bathtub
Bring modern simplicity into your bathroom with this clean, streamlined apron tub. Its ergonomic interior supports a relaxing bathing experience with smooth contours and a spa‑like soaking well. The glossy, easy‑to‑clean surface maintains a fresh look with minimal effort. Designed for modern living, it provides lasting comfort and a polished aesthetic.
Specifications
| Model / Order # | 2973102 |
|---|---|
| Collection | Studio |
| Family | Studio |
| Material | Acrylic |
| Finish / Color | White |
| Installation Type | Alcove |
| Shape | Rectangular |
| Residential Warranty | Limited Lifetime |
| Commercial Warranty | Lifetime |
| Availability | Ships Free - in 3-4 weeks |
Dimensions & Capacity
| Nominal Length | 60 in |
|---|---|
| Nominal Width | 30 in |
| Nominal Height | 18 in |
| Water Depth | 12 in |
| Water Capacity | 48 gal |
| Seating Capacity | 1 |
| Skirt Height | 18 in |
| Drain Position | Left |
| Drain Size | 2.125 in |
| Drain Included | No |
| Overflow Included | No |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Sleek, minimalist Studio Collection design with clean modern lines
- Premium materials: high-gloss acrylic with fiberglass reinforcement for lasting durability
- Integral apron: finished front panel eliminates the need for a separate skirt
- Comfortable bathing well: generous interior depth for full-body soaking
- Spacious dimensions: 60 x 30-inch footprint fits standard alcove installations
- Smooth, non-porous surface is stain-resistant and easy to clean
- Certified quality: CSA listed and IAPMO compliant
- Classic white finish coordinates with a wide range of bathroom fixtures and tile
Available Finishes
| White | 2973202.020 · UPC 791556109018 |
|---|---|
| White | 2973102.020 · UPC 791556109032 |
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 97 lbs |
| Shipping Length | 62.75 in |
| Shipping Width | 32.75 in |
| Shipping Height | 21.12 in |
| Cartons | 1 |
| Pieces | 1 |
| Full-Truckload Qty | 108 |
| Stackable | No |
Documents & Downloads
Certifications & Compliance
IAPMO ListedCSAFHA
Project Information & Notes
Project:
Contractor:
Representative:
Date:
Tel:
Notes:
Limited Lifetime residential warranty · Lifetime commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
