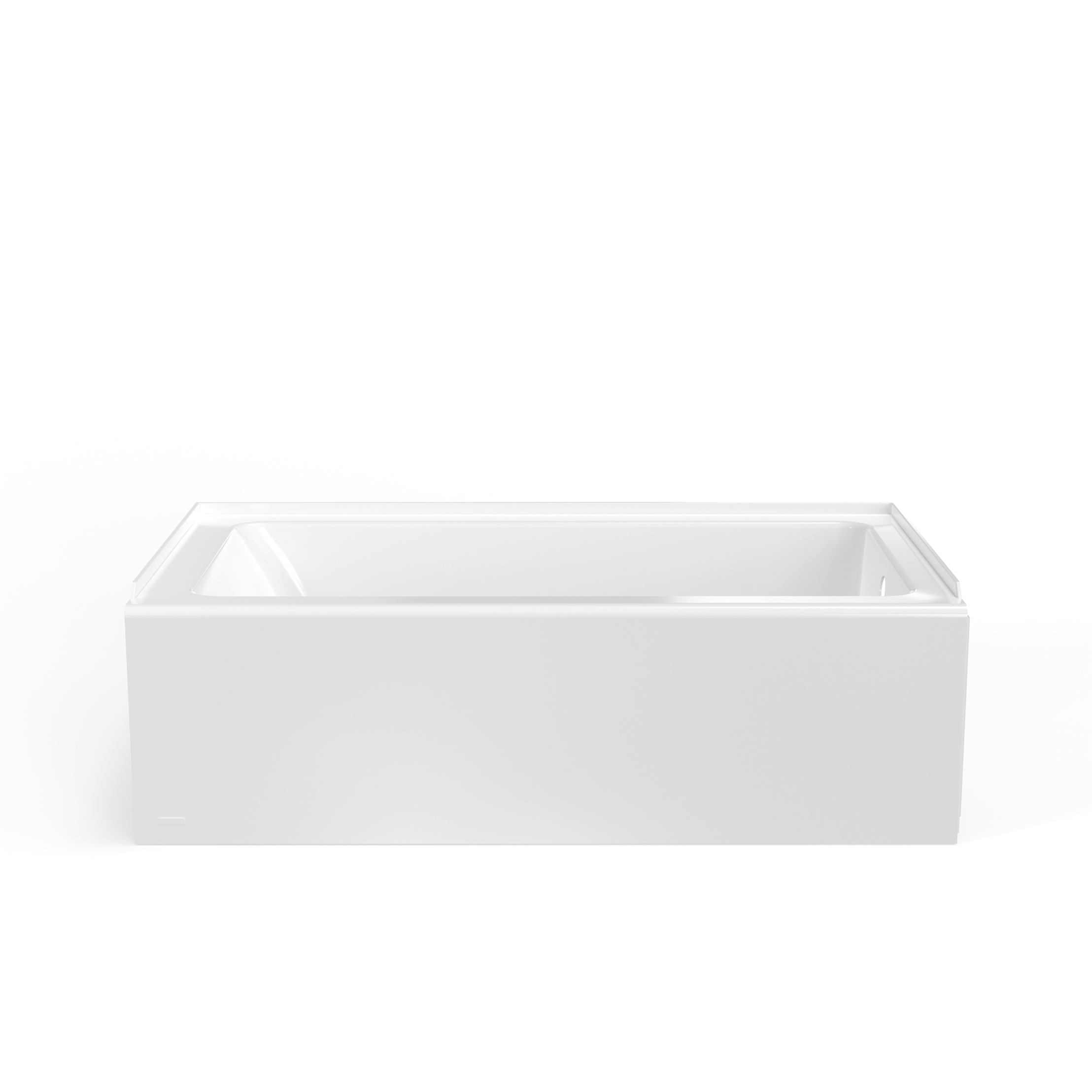

Studio 60 x 30-Inch Integral Apron Bathtub Above Floor Rough
The Studio Integral Apron Bathtub Above Floor Rough simplifies installation while delivering sleek, contemporary styling. Its raised rough-in design allows easier plumbing access for remodels and repairs. Built from durable acrylic, it provides lasting performance and comfortable soaking depth.
Specifications
| Model / Order # | 2573102 |
|---|---|
| Collection | Studio |
| Family | Studio |
| Series | ACRYLICS |
| Material | Acrylic |
| Finish / Color | White |
| Installation Type | Alcove |
| Shape | Rectangular |
| Country of Origin | USA |
| Residential Warranty | 10-year |
| Commercial Warranty | 1-year |
| Availability | Ships Free - in 3-4 weeks |
Dimensions & Capacity
| Nominal Length | 60 in |
|---|---|
| Nominal Width | 30 in |
| Nominal Height | 18 in |
| Water Depth | 10.8125 in |
| Water Capacity | 40 gal |
| Seating Capacity | 1 |
| Skirt Height | 18 in |
| Drain Position | Left |
| Drain Size | 2.125 in |
| Drain Included | No |
| Overflow Included | No |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Premium materials: High-gloss acrylic with fiberglass reinforcement: non-porous, stain-resistant surface that stays looking new
- Above floor rough design: eliminates the need to relocate the drain, simplifying installation and saving time and money
- Deep soaking comfort: 10.81-inch water depth delivers ample coverage for a relaxing soak
- Spacious dimensions: 60 x 30-inch footprint and holds up to 40 gallons for a comfortable bathing experience
- ADA compliant: meets Americans with Disabilities Act requirements for accessible bathing spaces
- Pre-leveled base: built-in leveling support ensures accurate, hassle-free installation without requiring mortar
- Standard drain opening: compatible with most 1.5-2 inch waste and overflow drain assemblies
- Clean profile: refined exterior lines complement a wide range of bathroom tile and fixture finishes
- Classic white finish: timeless white color coordinates with a wide range of bathroom fixtures and tile
Available Finishes
| White | 2573202.020 · UPC 193406029635 |
|---|---|
| White | 2573102.020 · UPC 193406029512 |
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 97 lbs |
| Shipping Length | 62.75 in |
| Shipping Width | 32.75 in |
| Shipping Height | 22.18 in |
| Cartons | 1 |
| Pieces | 1 |
| Packaging Volume | 26.38 ft³ (0.75 m³) |
| Full-Truckload Qty | 78 |
| Stackable | No |
Installation
Items required for installation
PPE, Level, Measuring Tape, Screws, Fender Washers, Screwdriver, Waste & Overflow Drain Kit (Metal or plastic), Plumber's Putty, Floor Levelling Compound & Trowel (if required)
Documents & Downloads
Certifications & Compliance
Project Information & Notes
10-year residential warranty · 1-year commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
