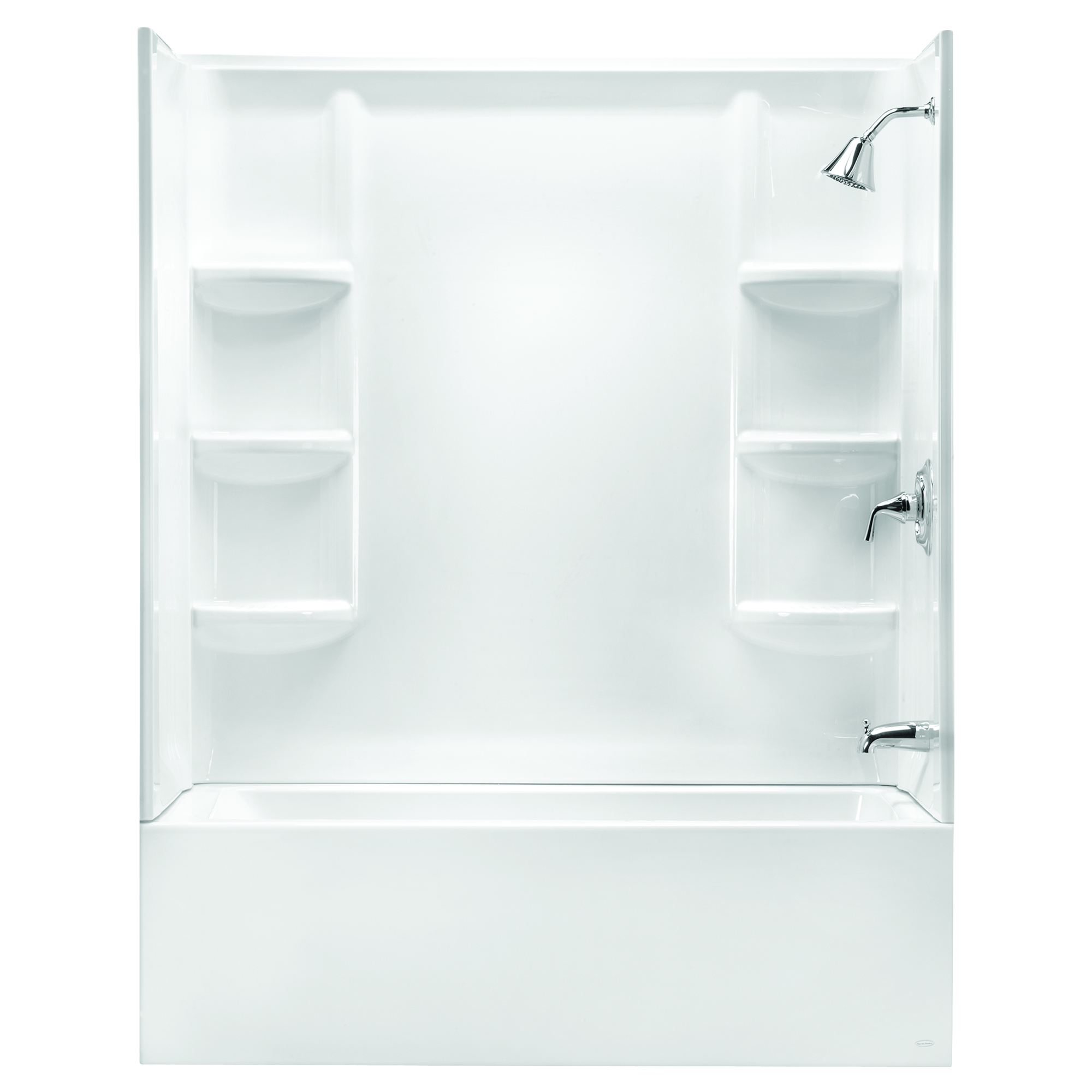

Studio 60 x 32 x 60-Inch Bath Wall Set
The American Standard Studio bath wall set brings a smooth, grout-free surface and built-in storage to your bathroom renovation. Six 4.5-inch-deep shelves hold full-size bottles, while tongue-and-groove interlocking construction creates a watertight installation. The direct-to-stud method attaches directly to studs for a solid, professional result. Backed by a 15-year warranty.
Specifications
| Model / Order # | AS041-2946BW32 |
|---|---|
| Collection | Studio |
| Family | STUDIO |
| Series | Studio |
| Material | Polystyrene |
| Finish / Color | White |
| Installation Type | Direct-to-stud |
| Shape | Rectangular |
| Country of Origin | Mexico |
| Residential Warranty | 15-year |
| Commercial Warranty | 1-year |
| Availability | Ships within 7 business days |
Dimensions & Capacity
| Nominal Length | 60 in |
|---|---|
| Nominal Width | 32 in |
| Nominal Height | 60 in |
| Drain Included | No |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Smooth and glossy – Easy to clean with no grout lines to maintain
- Built-in storage – Six generous shelves are 4 ½-in. deep, roomy enough to hold extra-large bottles
- Interlocking design – Tongue and groove construction prevents water seepage
- Three-piece system – Includes two side walls and one back wall
- Strong and durable – Impact resistant polystyrene material
- Proudly made in the USA
- Built to last
- Drywall is not required
- 15-Year Limited Warranty provides peace of mind for years to come
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 27.024 lbs |
| Shipping Length | 61.125 in |
| Shipping Width | 60.938 in |
| Shipping Height | 6.563 in |
| Cartons | 1 |
| Pieces | 3 |
| Packaging Volume | 14.15 ft³ (0.4 m³) |
| Full-Truckload Qty | 140 |
| Stackable | No |
Installation
Items required for installation
level, pencil, drill, 1/8 drill bit, silicone sealant, square, measuring tape, Phillips screwdriver, hole saw, box of #8x1 3/4 panhead screws, wood shims, utility knife, washer
Documents & Downloads
Project Information & Notes
15-year residential warranty · 1-year commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
