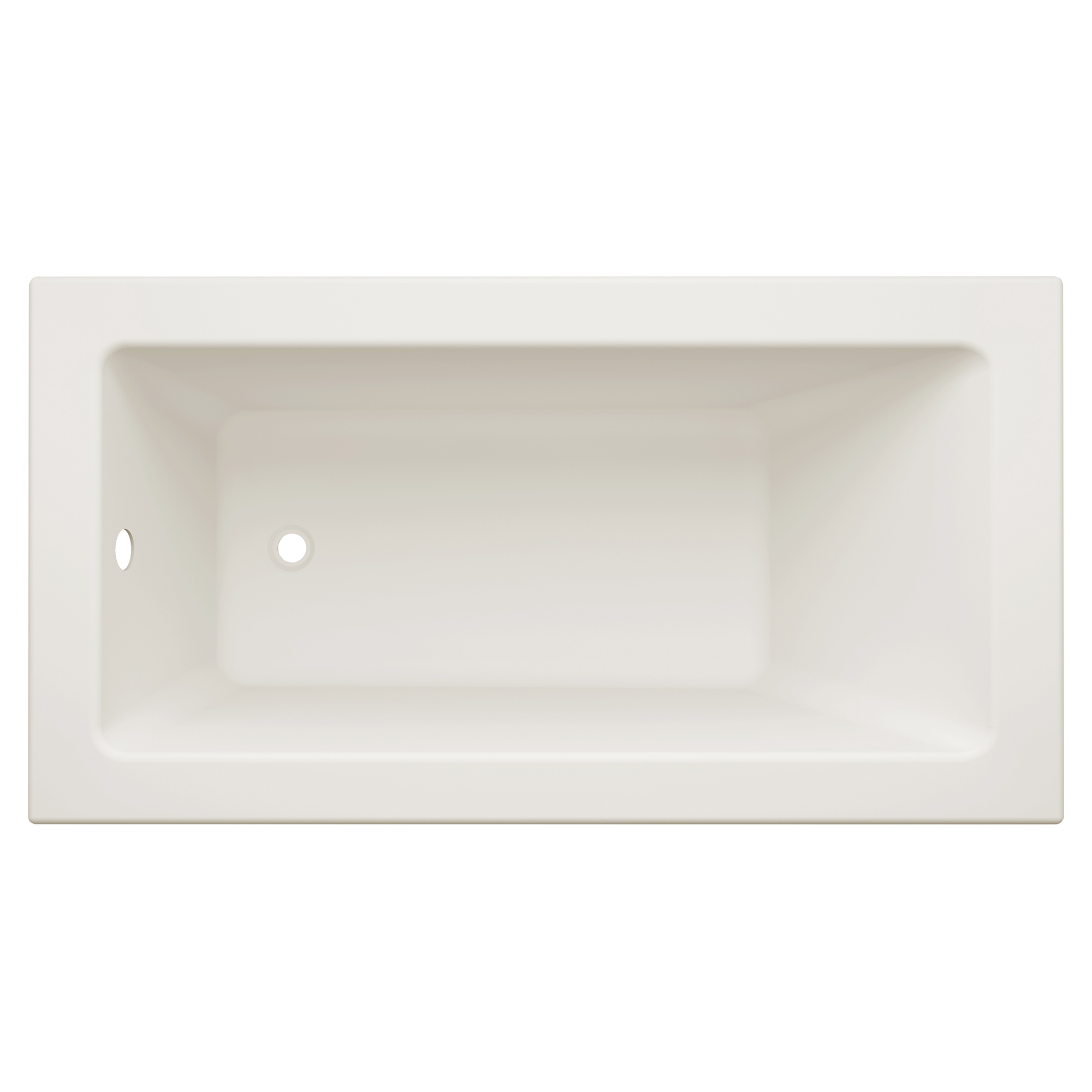

Studio® 66 x 36-Inch Drop-In Bathtub With Zero Edge
The American Standard Studio combines quality materials and thoughtful design for a reliable, long-lasting bathing solution. The acrylic construction provides lasting durability with a high-gloss, easy-clean surface. Measures 66 x 36 inches for a comfortable fit in most standard bathrooms. Backed by a 10-year residential warranty.
Specifications
| Model / Order # | 2938002-D0 |
|---|---|
| Collection | Studio |
| Family | STUDIO |
| Series | ACRYLICS |
| Material | Acrylic |
| Finish / Color | White |
| Installation Type | Drop-In |
| Shape | Rectangular |
| Country of Origin | USA |
| Residential Warranty | 10-year |
| Commercial Warranty | 1-year |
| Availability | Ships Free - in 3-4 weeks |
Dimensions & Capacity
| Nominal Length | 66 in |
|---|---|
| Nominal Width | 36 in |
| Nominal Height | 22 in |
| Water Depth | 15.75 in |
| Water Capacity | 71 gal |
| Seating Capacity | 1 |
| Drain Position | Reversible |
| Drain Size | 2.125 in |
| Drain Included | No |
| Overflow Included | No |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Premium materials: High-gloss acrylic with fiberglass reinforcement: non-porous, stain-resistant surface that stays looking new
- Drop-in installation: fits into any custom deck or platform for a tailored, architectural look
- Deep soaking comfort: 15.75-inch water depth provides a full-body immersion experience
- Spacious dimensions: 66 x 36-inch footprint and holds up to 80 gallons for a comfortable bathing experience
- Safe bathing surface: designed with user safety in mind for confident, secure use
- Installation ready: engineered for straightforward installation with standard tools and hardware
- Reversible drain: adaptable drain outlet works with left- or right-hand plumbing configurations
- Flexible deck space: drop-in configuration allows you to customize the surrounding deck for your preferred storage needs
- Classic white finish: timeless white color coordinates with a wide range of bathroom fixtures and tile
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 131 lbs |
| Shipping Length | 68.6 in |
| Shipping Width | 38.8 in |
| Shipping Height | 22.5 in |
| Cartons | 1 |
| Pieces | 1 |
| Packaging Volume | 38.64 ft³ (1.09 m³) |
| Full-Truckload Qty | 51 |
| Stackable | No |
Installation
Items required for installation
PPE, Level, Measuring Tape, Screws, Fender Washers, Screwdriver, Waste & Overflow Drain Kit (Metal or plastic), Plumber's Putty, Floor Levelling Compound & Trowel (if required)
Documents & Downloads
Certifications & Compliance
Project Information & Notes
10-year residential warranty · 1-year commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
