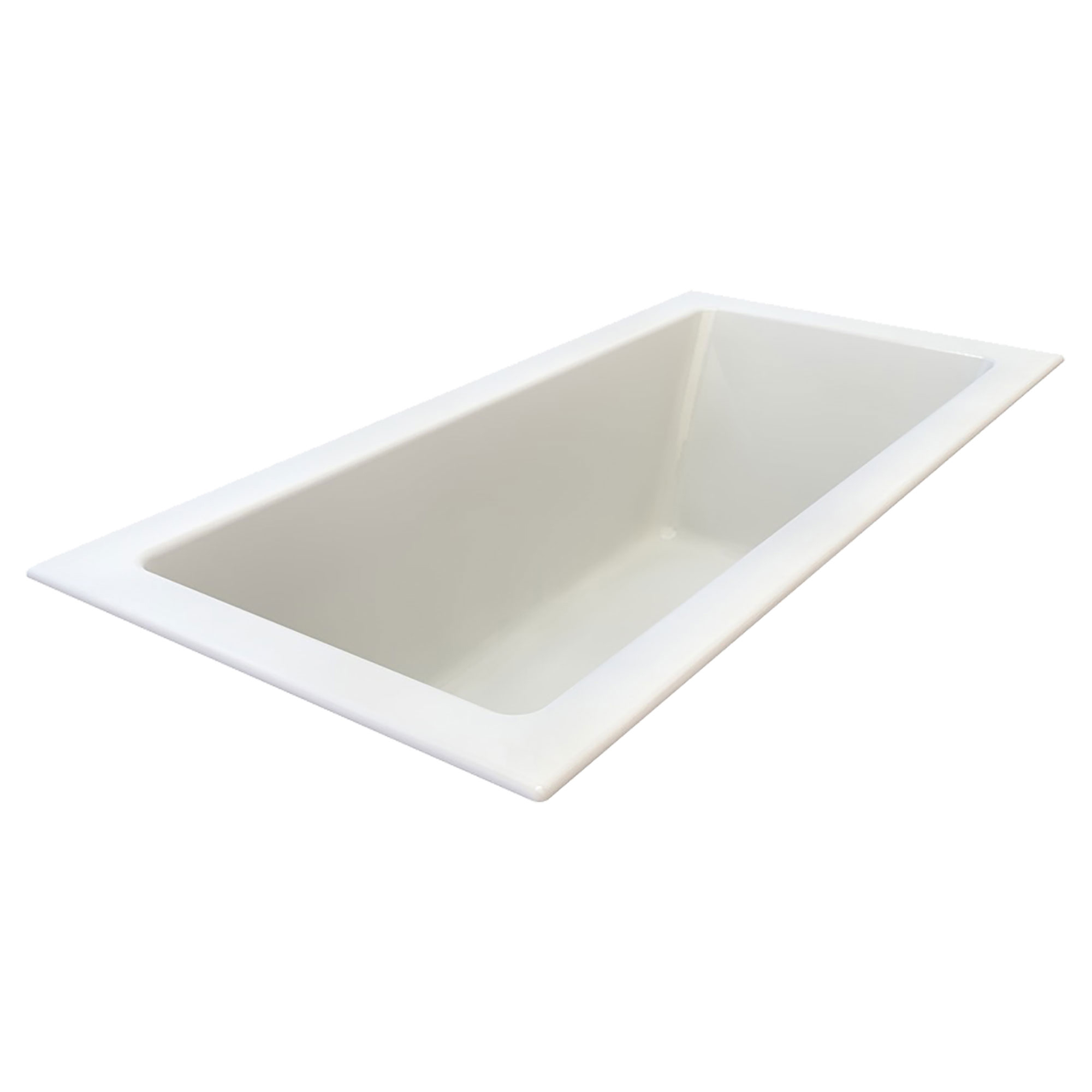

Studio® 72 x 36-Inch Drop-In Soaking Bathtub with Zero Edge
The Studio Drop-in Bathtub with Zero Edge creates a clean, custom look. Designed for relaxation with a 17-3/4-in. (451 mm) soaking depth and contoured lumbar support for added comfort, this Studio Bathtub is an inviting addition to a bathroom retreat. Made of high-gloss acrylic for easy cleaning and lasting durability. Coordinates perfectly with the Studio bathroom collection.
Specifications
| Model / Order # | 2940002-D0 |
|---|---|
| Collection | Studio |
| Family | STUDIO |
| Series | ACRYLICS |
| Material | Acrylic |
| Finish / Color | White |
| Installation Type | Drop-In |
| Shape | Rectangular |
| Country of Origin | USA |
| Residential Warranty | 10-year |
| Commercial Warranty | 1-year |
| Availability | Ships Free - in 3-4 weeks |
Dimensions & Capacity
| Nominal Length | 72 in |
|---|---|
| Nominal Width | 36 in |
| Nominal Height | 22 in |
| Water Depth | 15.75 in |
| Water Capacity | 71 gal |
| Seating Capacity | 1 |
| Drain Position | Reversible |
| Drain Size | 2.125 in |
| Drain Included | No |
| Overflow Included | No |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Durable design – High-gloss acrylic with fiberglass reinforcement
- Spacious interior – Deep, generous bathing well for comfortable soaking
- Textured floor – Helps to prevent slips and falls
- Easy installation – Pre-leveled bottom for ease and precision
- Install options – Choose drop-in or under-mount look
- Easy to clean – High-gloss surface for wipe-clean convenience
- Comfortable deep soaking depth
- Minimalist design
- 10 year warranty – Buy with confidence
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 141 lbs |
| Shipping Length | 62.5 in |
| Shipping Width | 38.8 in |
| Shipping Height | 22.5 in |
| Pieces | 1 |
| Packaging Volume | 40.67 ft³ (1.15 m³) |
| Full-Truckload Qty | 48 |
| Stackable | Yes |
Installation
Items required for installation
PPE, Level, Measuring Tape, Screws, Fender Washers, Screwdriver, Waste & Overflow Drain Kit (Metal or plastic), Plumber's Putty, Floor Levelling Compound & Trowel (if required)
Documents & Downloads
Certifications & Compliance
Project Information & Notes
10-year residential warranty · 1-year commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
