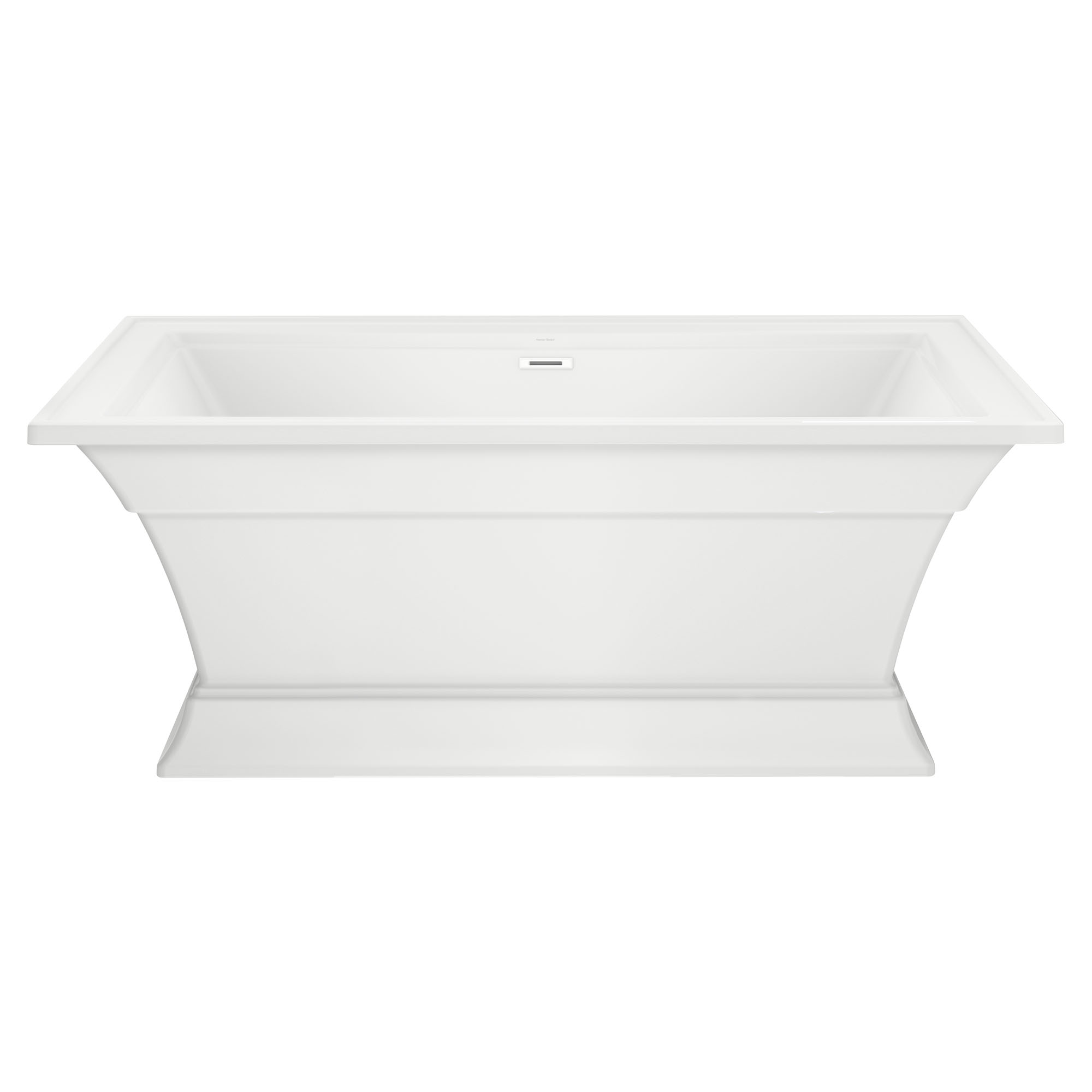

Town Square® S 68 x 36-Inch Freestanding Bathtub Center Drain With Integrated Overflow
The American Standard Town Square freestanding bathtub brings sculptural beauty and deep-soaking luxury to any bathroom. Crafted from acrylic with fiberglass reinforcement, it features a 17-inch soaking depth for complete immersion and a straight back wall for flush-to-wall placement. Backed by a limited lifetime warranty.
Specifications
| Model / Order # | 2546004 |
|---|---|
| Collection | Town Square |
| Family | TOWN SQUARE S |
| Series | ACRYLICS |
| Material | Acrylic |
| Finish / Color | White |
| Installation Type | Freestanding |
| Shape | Rectangular |
| Country of Origin | China |
| Residential Warranty | Lifetime |
| Commercial Warranty | Lifetime |
| Availability | Ships Free - in 3-4 weeks |
Dimensions & Capacity
| Nominal Length | 68 in |
|---|---|
| Nominal Width | 36 in |
| Nominal Height | 24.4375 in |
| Water Depth | 17 in |
| Water Capacity | 74 gal |
| Seating Capacity | 1 |
| Drain Position | Center |
| Drain Size | 2.125 in |
| Drain Included | No |
| Overflow Included | No |
Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Premium materials: High-gloss acrylic with fiberglass reinforcement: non-porous, stain-resistant surface that stays looking new
- Freestanding design: creates a stunning focal point and allows flexible placement including flush-to-wall installation
- Deep soaking comfort: 17-inch water depth provides a full-body immersion experience
- Spacious dimensions: 68 x 36-inch footprint and holds up to 74 gallons for a comfortable bathing experience
- Safe bathing surface: designed with user safety in mind for confident, secure use
- Flush-to-wall capable: innovative straight back design allows installation against a wall to maximize bathroom space
- Center drain: positioned for symmetric access and comfortable soaking from either end of the tub
- Wide rear deck: rear ledge keeps bathing essentials close at hand
- Classic white finish: timeless white color coordinates with a wide range of bathroom fixtures and tile
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 163 lbs |
| Shipping Length | 71.375 in |
| Shipping Width | 39.75 in |
| Shipping Height | 26.688 in |
| Cartons | 1 |
| Pieces | 1 |
| Packaging Volume | 34.62 ft³ (0.98 m³) |
| Full-Truckload Qty | 62 |
| Stackable | No |
Installation
Items required for installation
Tub, Overflow Cover and Drain
Documents & Downloads
Project Information & Notes
Lifetime residential warranty · Lifetime commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
