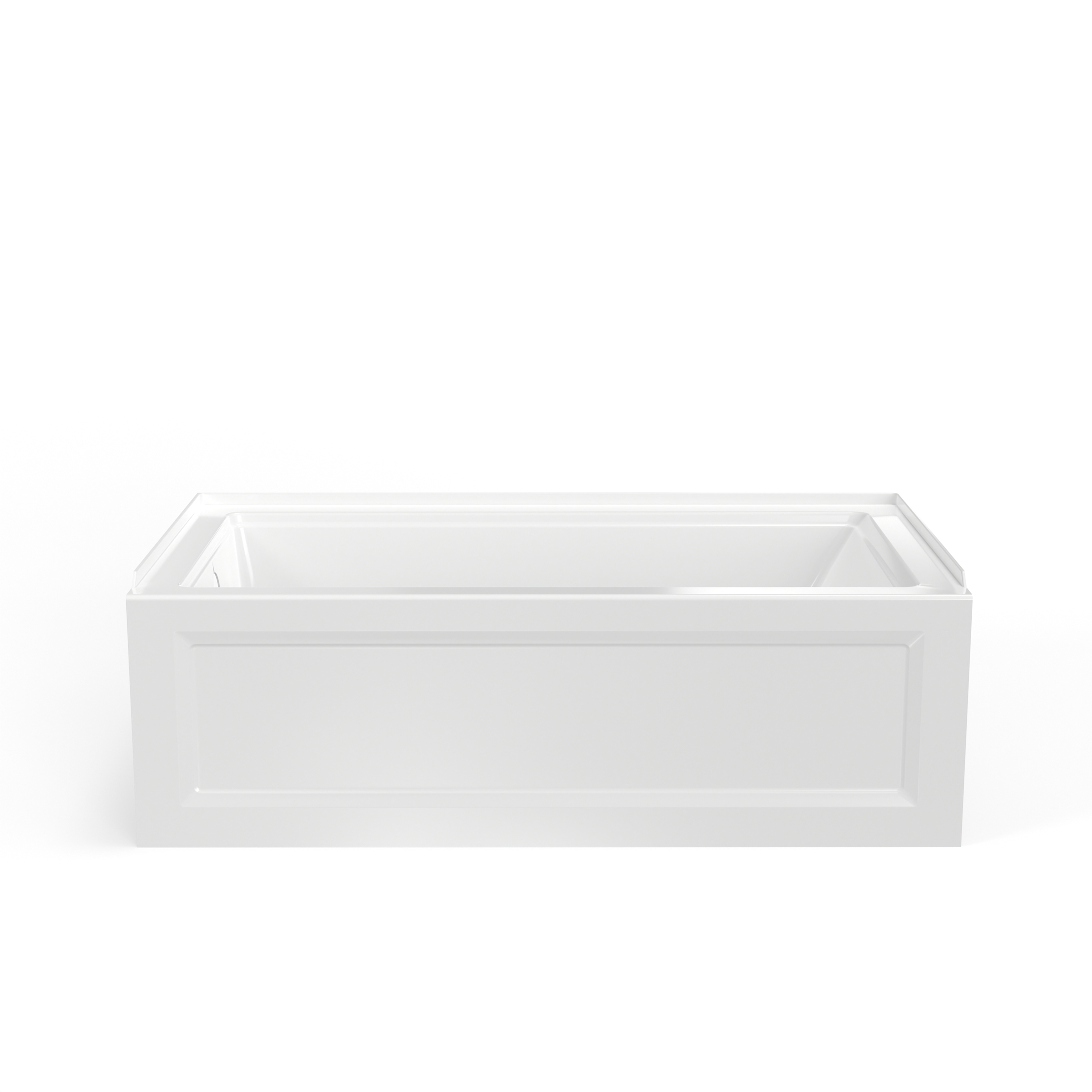

Town Square S Integral Apron Bathtub
The Town Square S Integral Apron Bathtub blends traditional elegance with modern performance. Its integral apron delivers a clean, finished look, while durable high-gloss acrylic construction provides long-lasting beauty. Designed for alcove installations, it offers generous soaking depth and everyday reliability.
Specifications
| Model / Order # | 2545202 |
|---|---|
| Collection | Town Square |
| Family | Town Square S |
| Series | ACRYLICS |
| Material | Acrylic |
| Finish / Color | White |
| Installation Type | Alcove |
| Shape | Rectangular |
| Country of Origin | USA |
| Residential Warranty | 10-year |
| Commercial Warranty | 1-year |
| Availability | Ships Free - in 3-4 weeks |
Dimensions & Capacity
| Nominal Length | 60 in |
|---|---|
| Nominal Width | 32 in |
| Nominal Height | 19 in |
| Water Depth | 12.75 in |
| Water Capacity | 51 gal |
| Seating Capacity | 1 |
| Drain Position | Left |
| Drain Size | 2.125 in |
| Drain Included | No |
| Overflow Included | No |
Features & Benefits
- Premium materials: High-gloss acrylic with fiberglass reinforcement: non-porous, stain-resistant surface that stays looking new
- Alcove installation: integral apron front creates a polished built-in appearance with integral 3-sided tiling flange for water protection
- Deep soaking comfort: 12.75-inch water depth delivers ample coverage for a relaxing soak
- Spacious dimensions: 60 x 30-inch footprint and holds up to 47 gallons for a comfortable bathing experience
- ADA compliant: meets Americans with Disabilities Act requirements for accessible bathing spaces
- Three-sided tile flange: integral 1-inch water retention flange on three sides protects walls and simplifies installation
- Standard drain opening: compatible with most 1.5-2 inch waste and overflow drain assemblies
- Clean profile: refined exterior lines complement a wide range of bathroom tile and fixture finishes
- High-gloss finish: non-porous, bright surface reflects light beautifully and cleans easily
Available Finishes
| White | 2544202.020 · UPC 791556110489 |
|---|---|
| White | 2545102.020 · UPC 791556110465 |
| White | 2544102.020 · UPC 791556110502 |
| White | 2545202.020 · UPC 791556110441 |
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 209.4 lbs |
| Shipping Length | 63 in |
| Shipping Width | 35 in |
| Shipping Height | 23.25 in |
| Cartons | 1 |
| Pieces | 1 |
| Packaging Volume | 27.97 ft³ (0.79 m³) |
| Full-Truckload Qty | 78 |
| Stackable | No |
Installation
Items required for installation
PPE, Level, Measuring Tape, Screws, Fender Washers, Screwdriver, Waste & Overflow Drain Kit (Metal or plastic), Plumber's Putty, Floor Levelling Compound & Trowel (if required)
Documents & Downloads
Certifications & Compliance
Project Information & Notes
10-year residential warranty · 1-year commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
