American Standard® · Technical Data Sheet
Townsend 48 x 36-Inch Single Threshold Shower Bases With Center Drain
The American Standard Townsend shower base is crafted from 100% solid non-porous material, offering a smooth matte surface that resists bacteria and fungi while remaining renewable if damaged. The integral tiling flange simplifies alcove installation while ensuring a watertight seal. Backed by a limited lifetime warranty.
Specifications
| Model / Order # | 4836SM-COL |
|---|---|
| Collection | Townsend |
| Family | TOWNSEND |
| Series | SOLID SURFACE BASES |
| Material | 100% Solid Non-Porous Material |
| Finish / Color | Soft White |
| Installation Type | Alcove |
| Shape | Rectangular |
| Country of Origin | China |
| Residential Warranty | Limited Lifetime |
| Commercial Warranty | Lifetime |
| Availability | Free Shipping Eligible - Select Option For Availability |
Dimensions & Capacity
| Nominal Length | 48 in |
|---|---|
| Nominal Width | 36 in |
| Nominal Height | 3.875 in |
| Drain Position | Center |
| Drain Size | 3.375 in |
| Drain Included | No |

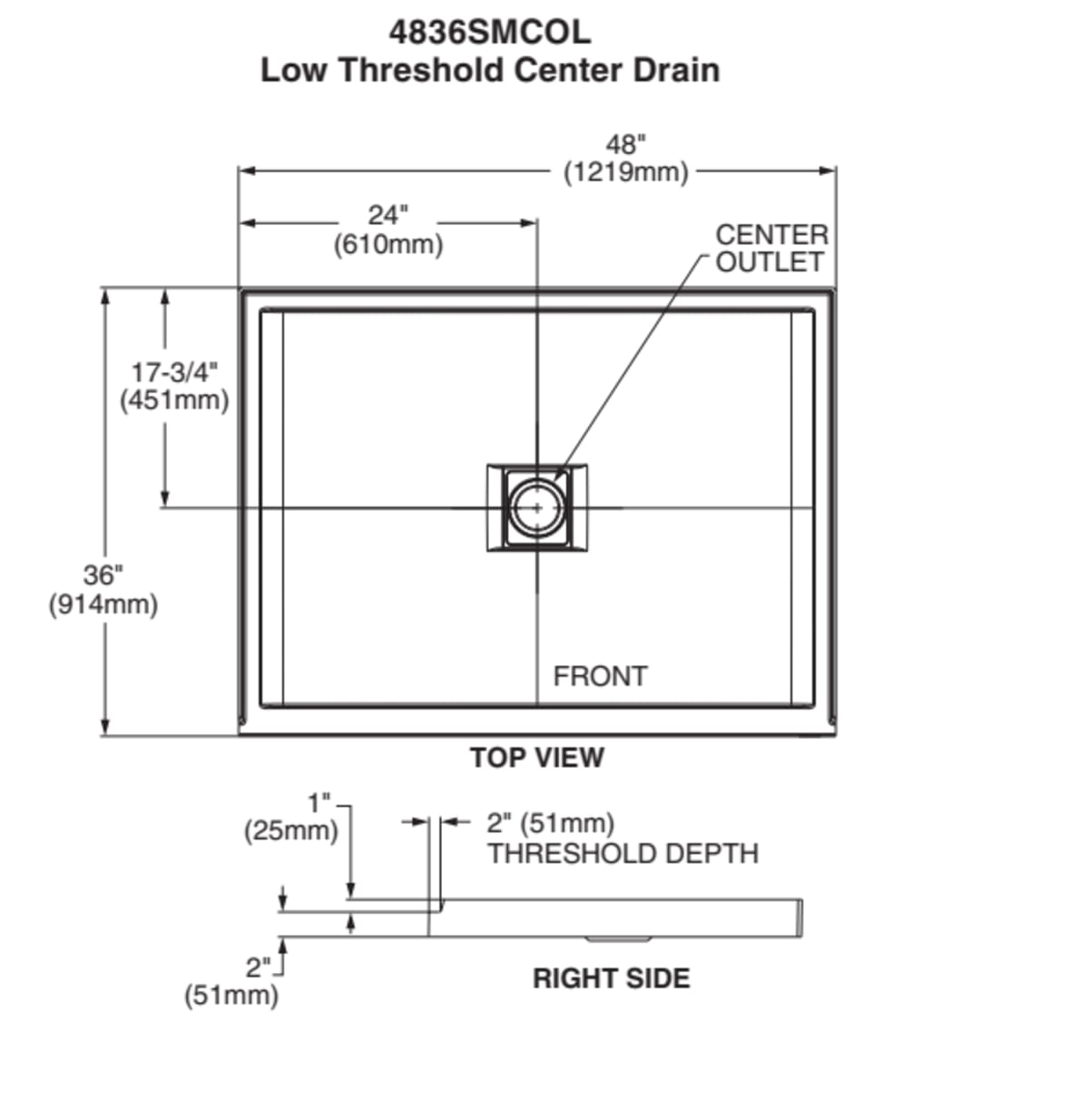

Dimensional Drawing
From the official spec sheet. Open the full PDF for all pages and rough-in detail.
Features & Benefits
- Smooth matte surface
- Integral 3-sided 1" tiling/water retention flange for easy installation
- Repairable and renewable surface
- Fungi and bacterial resistant
- Self-extinguishing
- UV resistant
- Resistant to stains and impact
- Easy maintenance and cleaning
- Drain not included
Packaging & Shipping
| Ship Method | LTL |
|---|---|
| Shipping Group | FREIGHT |
| Shipping Weight | 779.64 lbs |
| Shipping Length | 53.312 in |
| Shipping Width | 41.5 in |
| Shipping Height | 5 in |
| Cartons | 1 |
| Pieces | 1 |
| Packaging Volume | 6.4 ft³ (0.18 m³) |
| Stackable | No |
Documents & Downloads
Project Information & Notes
Project:
Contractor:
Representative:
Date:
Tel:
Notes:
Limited Lifetime residential warranty · Lifetime commercial.
Questions, samples, or project pricing? Contact your American Standard sales rep.
Specifications subject to change without notice. Confirm current dimensions and certifications on the product page before specifying. © American Standard Bathing.
